Small Roll Slitter

Enlarge

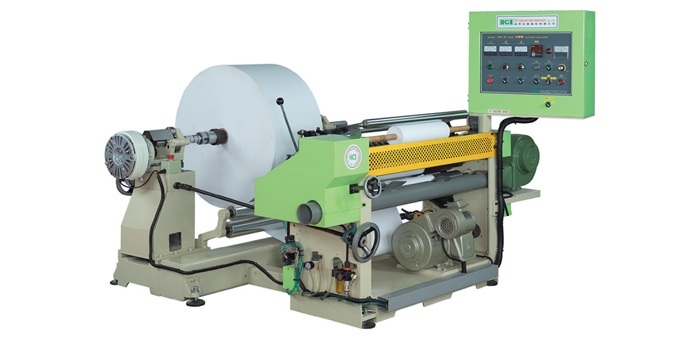

Small Roll Slitter

Modeeel: FSL-D800

Industry: Plastic and Rubber Industry / Machinery for Processing Plastics / Plastic Slitting & Rewinding Machines

Supplier; HCI Converting Equipment Co., Ltd.

Booth No: -

Characteristics

※Unwinding Section
　　Lift-up & floating type stand with air shaft.
　　Simplified construction for trouble less.
※Slitter Section
　　Shear knives cutting method especial for paper slit.
　　Equipped with trim reject fan which can blow the trim out.
※winding Section
　　An exclusive patented magnetic powder type surface rewinding mechanism allowing rewind tension to be easily adjusted according to the material’s characteristics. It also reduces the wear of driving rubber roller.
　　Equipped with meter counter which can stop automatically when preset length reached.
　　End roll warning device, for reminding the user to change the roll when the warning mark appeared.
※Optional Accessories for FSL-D Roll Slitter
　　Web guiding system (edge).
　　Two-ply unwind stand.
　　Hydraulic ascent / descent unwind stand. (dia.1,000mm)
　　Unwind tension auto controller with load cell sensor.
　　Vacuum type trim disposal system.
　　Special size of rewind shaft.
　　Pneumatic rewind lay-on roller.

Specifications

Specifications	FSL-D800 Roll Slitter
Mechanical Speed (m/min)	0-150
Unwind Core Inner Diameter	3" or 6"
Web Width (mm)	300 - 800
Maximum Unwind Diameter (mm)	600
Slitter Techniques	Shear knives
Trim Removal	Trim Blower
Rewind Core Inner Diameter	1/2" - 3"
Minimum Slitting Web Width (mm)	40
Maximum Rewind Diameter (mm)	150
