Folding and Rewinding Machine

Enlarge

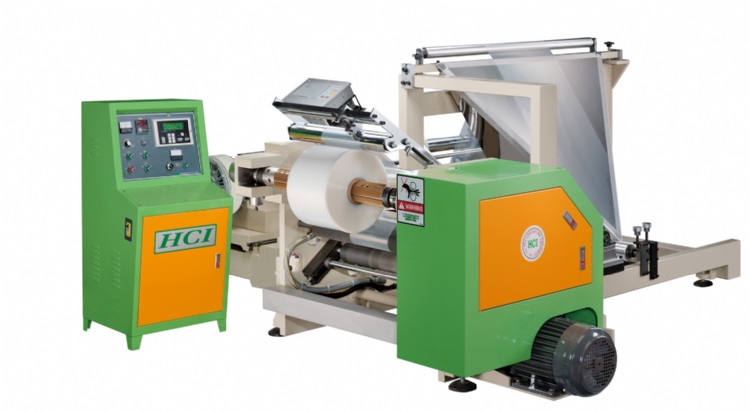

Folding and Rewinding Machine

Modeeel: FND-R1000

Industry: Plastic and Rubber Industry / Machinery for Processing Plastics / Plastic Slitting & Rewinding Machines

Supplier; HCI Converting Equipment Co., Ltd.

Booth No: -

Characteristics

※Horizontal unwind stand, the position of lift-up type 3” mandrel is adjustable.
※Web folding device, quick adjustment and constant edge.
※Unwind adopt powder brake and main drive adopt AC motor.
※Swing out type rewind mandrel for fast loading.
※Rewind lay-on roller ensures the winding quality.
※Equipped with meter counter which can stop the machine automatically when preset length reached.
※Optional Accessories
　　3” Unwind air shaft
　　Web guiding system (edge)
　　Unwind tension auto controller with load cell sensor
　　Unwind tension auto controller
　　3” air shaft rewinding device
　　statics eliminator
　　Trimming device (After folded)

Specifications

Specifications	FND-R1000 Folding and Rewinding Machine
Mechanical Speed [m/min]	0-150
Core Inner Diameter [mm]	76 / 3"
Unwind Web Width [mm]	300-1000
Maximum Unwind Diameter [mm]	600
Maximum Rewind Diameter [mm]	420
