Serial over GSM/GPRS

Enlarge

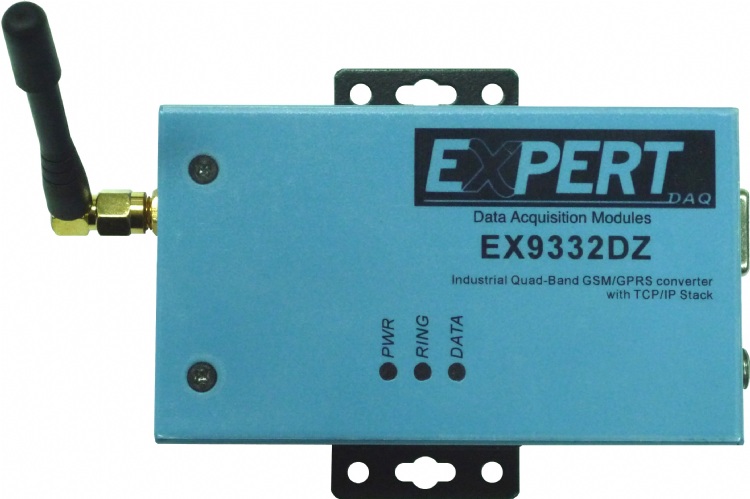

Serial over GSM/GPRS

Modeeel: EX-9332D-Z;EX-9332C-Z

Industry: Automatic/Industrial Machines & Equipments / Automated Machinery & Equipments / Automatic Control Systems

Supplier; TOPSCCC Technology CO., LTD.

Booth No: I932

Characteristics

EX-9332D-Z Industrial Quad-Band GSM/GPRS converter with TCP/IP Stack
EX-9332C-Z Industrial Quad-Band GSM/GPRS (Modem)data converter

EX-9332C-Z Features:

Quad-Band: GSM 850/900/1800/1900 MHz

SMS (Text and PDU mode) support

Standard DB9 RS232 serial interface

Standard AT-CMD

Data Rate: UL 42.8kbps/DL 85.6kbp

FAX support

EX-9332D-Z Features:

TCP/IP protocol ready by AT Command

Quad-Band: GSM 850/900/1800/1900 MHz (EX-9332D-Z)

Standard DB9 RS232 serial interface

Standard AT-CMD (EX-9332D-Z)

Data Rate: UL 42.8kbps/DL 85.6kbp (EX-9332D-Z)

Specifications

Products Name		EX-9332C-Z
Frequency		GSM 850/900/1800/1900 MHz
GPRS	Connectivity	GPRS Multi-Slot Class 10/8 ; GPRS Mobile Station class B
	Data Rate	DL: max. 85.6 kbps ; UL: max. 42.8 kbps
	Coding Scheme	CS-1, CS-2, CS-3 and CS-4
SMS		Text and PDU ; cell broadcast
FAX		Group 3, class 1
Voice		FR, HR, EFR and AMR
Output power		≒2.5W
Configuration		AT-CMD
Interface		DB9 RS232
SIM		3V/1.8V
Antenna		Female SMA
Voltage		DC5~25V (12V)
Temperature		Operation: -25 to +80°C ; Storage: -40°C to +85°C
Humidity		5% ~ 95% relative humidity
Dimension		75x50x16 mm
Weight		200g
PCB Dimension		N/A

Products Name		EX-9332DZ
Frequency		GSM 850/900/1800/1900 MHz
GPRS	Connectivity	GPRS Multi-Slot Class 10/8 ; GPRS Mobile Station class B
	Data Rate	DL: max. 85.6 kbps ; UL: max. 42.8 kbps
	Coding Scheme	CS-1, CS-2, CS-3 and CS-4
SMS		Text and PDU ; cell broadcast
FAX		Group 3, class 1
Voice		FR, HR, EFR and AMR
Output power		≒2.5W
Configuration		AT-CMD
Interface		DB9 RS232
SIM		3V/1.8V
Antenna		Female SMA
Voltage		DC5~25V (12V)
Temperature		Operation: -25 to +80°C ; Storage: -40°C to +85°C
Humidity		5% ~ 95% relative humidity
Dimension		75x50x16 mm
Weight		200g
PCB Dimension		N/A
