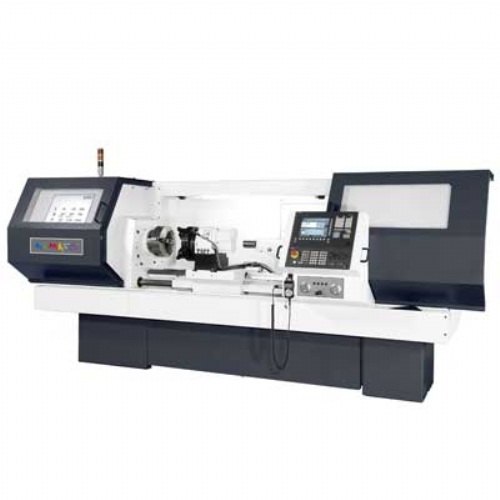

CNC LATHE
Modeeel: BMT 2280EN
Industry: Machine Tools / Lathes / CNC Lathes
Supplier; BENIGN ENTERPRISE CO., LTD.
Booth No: N/A
Characteristics
Specifications
CAPACITY
*SWING OVER BED: 560mm
*SWING OVER CROSS SLIDE: 390mm
*SWING IN GAP: 810mm
*DISTANCE BETWEEN CENTER: 2000mm
*GAP WIDTH FROM FACEPLATE: 230mm
HEADSTOCK
*SPINDLE NOSE: D1-8(A2-8)
*SPINDLE BORE: 80mm
*SPINDLE NOSE BUSH: MT7 x MT5
TAPER SPEEDS
*LOW RANGE: 26~266RPM
*MEDIUM RANGE: 267~766RPM
*HIGH RANGE: 767~2400RPM
TAILSTOCK
*QUILL TRAVEL: 200mm
*QUILL DIAMETER: 75mm
*QUILL TAPER: MT5
BED
*BED WIDTH: 345mm
*MAX. LONGITUDINAL TRAVEL: 1700mm
*MAX. TURNING LENGTH: 1650mm
GENERAL INFORMATION
*OVERALL LENGTH: 4710mm
*OVERALL WIDTH: 2100mm
*OVERALL HEIGHT: 2230mm
*NET WEIGHT: 3200mm
*GROSS WEIGHT: 4000mm
