Multitasking Turning Centers

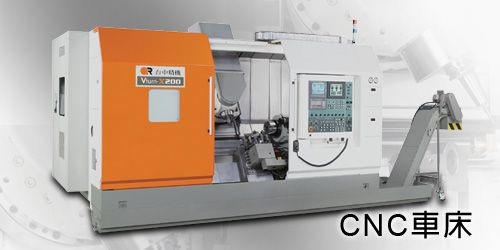

Model: Vturn-X200
Category: Machine Tools / Machining Centers / Machining Centers, Vertical
Characteristics
Multi-tasking lathe with twin built-in spindles
4-axis or 5-axis machining in one set-up
Roller geared swivel tool spindle
ATC and 40-tool magazine
Specifications
| Items | Unit | Vturn-X200 | |
|---|---|---|---|
| Capacity | Swing over bed | mm | 960 |
| Swing over carriage | mm | 610 | |
| Between centers | mm | 1123 | |
| Max. turning length | mm | 1000 | |
| Max. turning diameter | mm | 540 (limited by carriage cover) | |
| Max. part diameter from 1st to 2nd spindle | mm | 210 (limited by opt. lower turret) | |
| Travels | X1-axis (upper tool spindle) | mm | 600 |
| Z1-axis (upper tool spindle) | mm | 1100 | |
| Y-axis (upper tool spindle only) | mm | 160 (±80) | |
| B-axis | deg | 225 (+110 ~ -115) | |
| X2-axis (lower turret) | mm | 150 | |
| Z2-axis (lower turret) | mm | 782 (±391) | |
| E-axis (2nd spindle) | mm | 1050 | |
| Axis feed | X1/Z1/Y axis feed (upper tool spindle) | m/min | 36 / 36 / 18 |
| X1/Z1/Y/B axis motor power | kW | 5.5 / 7 / 4 / 3 | |
| Ball screw dia. x pitch | mm |
X1: 36 x P10, Z1: 40 x P12 Y: 36 x P10 |
|
| X2/Z2/E feed rate (lower turret and subspindle) | m/min | 18 / 20 / 20 | |
| X2/Z2/E motor power | kW | 3 / 3 / 4 | |
| Ball screw dia. x pitch | mm |
X2: 32 x P10, Z2: 32 x P12 E: 36 x P10 |
|
|
Main spindle (1st spindle) |
1st spindle nose (chuck) | inch | A2-6 (8") |
| 1st spindle speed | rpm | 4200 | |
| 1st spindle motor power (cont/20min/15%) | kW | 15 / 18.5 / 22 | |
| Spindle bore | mm | 62 | |
| Bearing inside diameter | mm | 100 | |
| Bar capacity | mm | 52 | |
| 2nd spindle | 2nd spindle nose (chuck) | inch | A2-6 (8") |
| 2nd spindle speed | rpm | 4200 | |
| 2nd spindle motor power (cont/20min/15%) | kW | 15 / 18.5 / 22 | |
| Spindle bore | mm | 62 | |
| Bearing inside diameter | mm | 100 | |
| Bar capacity | mm | 52 | |
| Upper tool spindle (B-axis milling head) | Turret type | rpm | Milling head with ATC |
| Positioning indexing resolution | deg. | 5 (by coupling) | |
| Continuous indexing resolution | deg. | 0.001 (by roller gear) | |
| Max. speed | rpm | 12000 | |
| Milling motor power (cont. / 30 min. / 25%) | kW | 11 / 15 / 22 | |
| ATC & tool magazine | Tool specification | - |
HSK-T63 (Opt. KM-63UT) |
| Tool capacity | - | 40 | |
| Tool selection | - | Fixed tool pot number | |
| Max. tool diameter | mm | 90 | |
| Max. tool length | mm | 280 | |
| Max. tool weight | kg | 7 | |
| Tool exchange time | sec | 1.8 (T-T), 11 (chip-chip) | |
|
Lower turret (Optional.) |
No. of tools | - | 9 |
| Tool shank size | mm | □25 | |
| Max. boring bar diameter | mm | 40 | |
| Tool exchange time | sec | 1.2 (0.4 excl. disk up / down) | |
| Machine | Controller | Fanuc 31i | |
| Tank capacity | L. | 560 | |
| Power requirement | KVA | 85 (95 with lower turret) | |
| Floor requirement | mm | 5500 x 3400 x 2600 | |
| Net weight | kg | 12000 |
Standard accessories:
- KITAGAWA® hydraulic chuck with soft jaws
- Chip conveyor with cart
- Spindle oil cooler
- Fully enclosed splash guarding
- Hand-wheel (Remote MPG)
- Oil skimmer
- Higher pressure coolant by Grundfos® pump SPK4-8
- SHOWA® lubrication pump
- Coolant flush on Z-axis cover
- 3 step warning light
- Air conditioner for electrical cabinet
- Fanuc manuals by CD ROM
Optional accessories:
- Hard jaws
- Detachable Manual Tool Presetter (Renishaw® MTP)
- KM-63UT tooling
- Lower turret with tooling accessories (excl. VDI tooling)
- Auto door
- Bar feeder interface
- Parts catcher (not for lower turret)
- Air blow above (or through) chuck
- Coolant Through Spindle (CTS)
- Independently controlled tailstock
- Fanuc manuals
- Fanuc 31i-B5 control for 5-axis simultaneous machining
