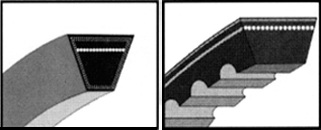

PRETECH PIX V-Belt
Model: EU regulation / USA / Inner Gear
Category: Machinery Parts and Components / Machinery Parts and Components / Drive Belts
Characteristics
NA
Specifications
EU regulation
|
規 格 |
SPZ |
SPA |
SPB |
SPC |
|
頂 寬/Wmm |
9.7 |
12.7 |
16.3 |
22 |
|
高 度/Tmm |
8 |
10 |
13 |
18 |
|
角 度/ ° |
40 |
40 |
40 |
40 |
|
長 度/Lmm |
500 - 4500 |
500 - 7000 |
600 - 12500 |
1400 - 17500 |
標準長度以mm為單位的有效週長（ Lp ）
標準規範：DIN 7753 Part 1, RMA IP 22, ISO 4183, ISO 4184, BS 3790, API 1B
USA
|
規 格 |
3V |
5V |
8V |
|
頂 寬/Wmm |
9 |
15 |
25 |
|
高 度/Tmm |
8 |
13 |
23 |
|
角 度/ ° |
40 |
40 |
40 |
|
長 度/Linches |
20" - 177" |
24" - 490" |
98" - 500" |
標準長度以 inches為單位的外週長（ La ）
標準規範：RMA IP 22, ISO 4183, ISO 4184, BS 3790, API 1B, JIS K 6368
Inner Gear
|
規 格 |
長 度/ L |
頂 寬/ Wmm |
高 度/ Tmm |
角 度/ ° |
|
XPZ |
650-5000mm |
9.7 |
8 |
38 |
|
XPA |
700-5000mm |
12.7 |
10 |
38 |
|
XPB |
1000-5000mm |
16.3 |
14 |
38 |
|
XPC |
2000-5000mm |
22 |
18 |
38 |
|
3VX |
25"-195" |
9 |
8 |
38 |
|
5VX |
45"-195" |
15 |
14 |
38 |
