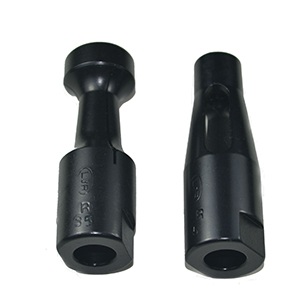

GIMCO 20# bar feed collets (finger chuck)
Model: GIMCO INSPIRE 320 (IEMCA Smart 320)
Category: Machine Tools / Lathes / CNC Automatic Lathes
Characteristics
Model： INSPIRE 320
Bar size：Φ3.0mm∼Φ18.0mm
Specification
Specifications
| Model | Bar size | Outside diameter | Total length | Regulatory teeth |
| 20# | 3.0~18.0mm | 20mm | 60mm | M10P1.0 |
| 22# | 14.0~19.0mm | 22mm | 60mm | M10P1.0 |
| 23# | 14.0~20.0mm | 23mm | 60mm | M10P1.0 |
| 25# | 16.5~23.0mm | 25mm | 60mm | M10P1.0 |
| 27# | 16.5~24.0mm | 27mm | 60mm | M10P1.0 |
