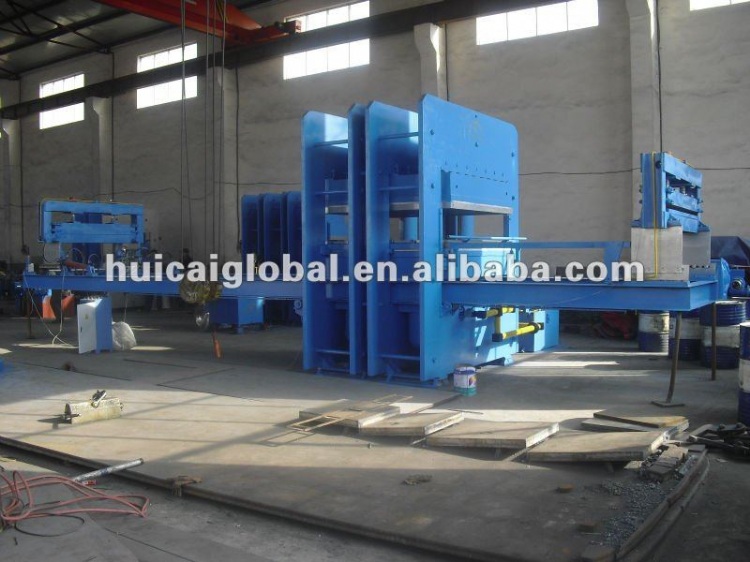

Large flat vulcanizer
Model: XLB-Q1400*8000
Category: Plastic and Rubber Industry / Rubber Processing Machinery / Other Rubber Processing Machines
Characteristics
1. Bran-new
2.Accessories complete
3.Perfect after-sales service
Specifications
Parameters/Version |
XLB-1400*5700*2 |
XLB-1400*10000*1 |
XLB-1600*10000*2 |
XLB-1800*8000*2 |
XLB-1800*12000*2 |
XLB-2000*10000*1 |
Platen size(L*M)(MN) |
1400*5700 |
1400*10000 |
1600*10000 |
1800*8000 |
1800*12000 |
2000*10000 |
Total pressure (MN) |
25.00 |
49.00 |
56.00 |
51.00 |
74.00 |
70.00 |
Pressure unit of plate(Mpa) |
3.13 |
3.5 |
3.5 |
3.54 |
3.4 |
3.5 |
Ram diameter(MM) |
360 |
450 |
450 |
600 |
500 |
600 |
Quantity of ram(MM) |
10 |
20 |
18 |
12 |
18 |
16 |
Max.ran stroke(MM) |
400 |
300 |
400 |
600 |
400 |
300 |
Clamping force(MN) |
0.72 |
0.90 |
1.20 |
1.20 |
1.20 |
1.20 |
Tensioning force(MN) |
0.60 |
0.80 |
1.10 |
1.00 |
1.10 |
1.00 |
Steam pressure(Mpa) |
0.63 |
0.63 |
0.63 |
0.63 |
0.63 |
0.63 |
Pressure of cooling water(Mpa) |
0.3 |
0.3 |
0.3 |
0.3 |
0.3 |
0.3 |
Application |
Conveyor belt |
Conveyor belt |
Conveyor belt |
Conveyor belt |
Conveyor belt |
Conveyor belt |
Control form |
PLC |
PLC |
PLC |
PLC |
PLC |
PLC |
Overall size (L*W*H)(mm) |
5700x2350x4170 |
10000x2400x3580 |
1000x2660x4120 |
2700x8000x4500 |
2000x12900x3930 |
10000x3100x4400 |
2.100% real manufacture meet all your requests;
3.It has passed CE,ISO Certification;
4.It provide one year quality guarantee and long-term technical support;
5.Provide all kinds of rubber machine: Vulcanizing machine, hydraulic press,Rubber sheeting mill,Rubber extruder,Vertical rubber cutter ,Rubber mixing mill,Rubber refining mill,Rubber crushing mill,Inner press vulcanizer,Kneader,Molding machine
6.products have been exported to all around the world, such as America, UK, Ukraine, Chile, Sri Lanka, Indonesia, Thailand
