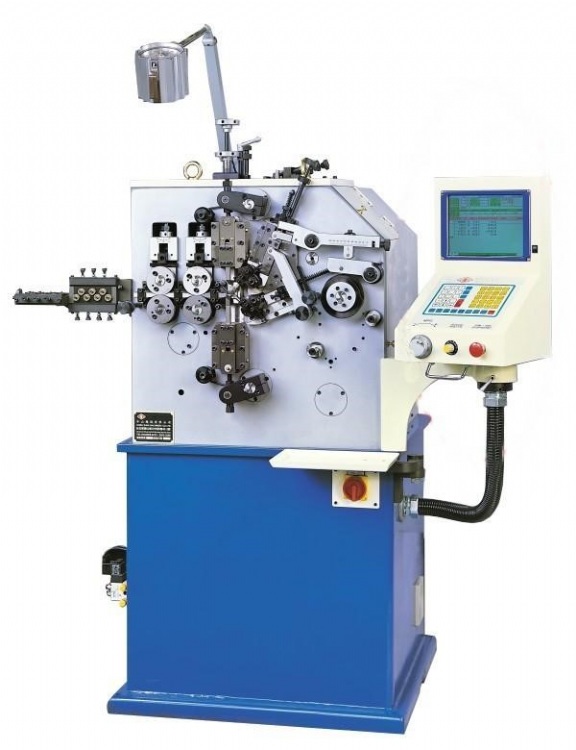

CNC Spring Coiler
Model: CSC-series (2-axis)
Category: Automatic/Industrial Machines & Equipments / Special Machine Tools / Spring Coil Winding Machines
Characteristics
1. Two axes with servo motors for feeding and cams
2. Taiwanese computer controller and Japanese servo motors
Option:
1. Spring gauge (spring length detector) included probe and sorter
2. Automatic pay off (decoiler) synchronizing with the coiler
3 Safety wiring, interlock and cover for CE standard
4. Full set of torsion spring tooling
5. Spring tray (air slide) for longer spring
6. Accessory for producing garter spring
Specifications
|
Model No. |
CSC-208 |
CSC-216 |
CSC-226 |
CSC-250 |
|
|
Wire Diameter (mm) |
0.1-0.8 |
0.4-1.6 |
0.8-2.6 |
2.0-5.0 |
|
|
Feed Roller (pair) |
1 |
2 |
2 |
3 |
|
|
Mini. Spring Index |
4 |
||||
|
Max. Spring O.D. (mm) |
20 |
45 |
50 |
80 |
|
|
Max. Feed length (mm) |
Unlimited |
||||
|
Max. Production Rate (pcs/min) |
550 |
350 |
300 |
100 |
|
|
Max. Feed Speed (m/min) |
100 |
150 |
150 |
54 |
|
|
Power Supply |
220V, 3Æ (transformer 380/400/415/440V is available) |
||||
|
Machine Dimension (mm) |
L |
920 |
1380 |
1000 |
2000 |
|
W |
760 |
980 |
1420 |
1300 |
|
|
H |
1520 |
1680 |
1730 |
2000 |
|
|
Machine Weight (kg) |
350 |
850 |
950 |
2450 |
|
