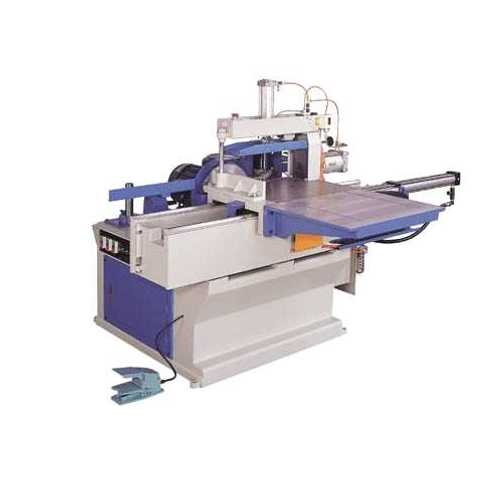

FINGER SHAPERS
Model: MODEL: FJ-450HA
Category: Woodworking Machinery Industry / Others / Other Woodworking Machines
Specifications
FINGER SHAPER-MODEL FJ-450HA(SEMI-AUTO)
Maximum working width 450mm
Maximum working thickness 4"
Table area 450(W)×880(L) mm
Shaper spindle diameter φ40mm
Shaper spindle speed 7000 RPM
Maximum diameter of cutter φ160mm
Saw arbor diameter φ1"
Sawblade speed 3450 RPM
Sawblade diameter φ12"(Big)、φ100mm(Small)
Cycle time 15 sec
Air pressure 5Kg/C㎡
Hydraulic pressure 35Kg/C㎡
Cutter driver motor 15HP
Sawblade driver motor 3HP
Feed hydraulic motor 2HP
Net weight 1300 Kg
Gorss weight 1450 Kg
Packing dmensions. 220(L)×124(W)×145(H) cm
