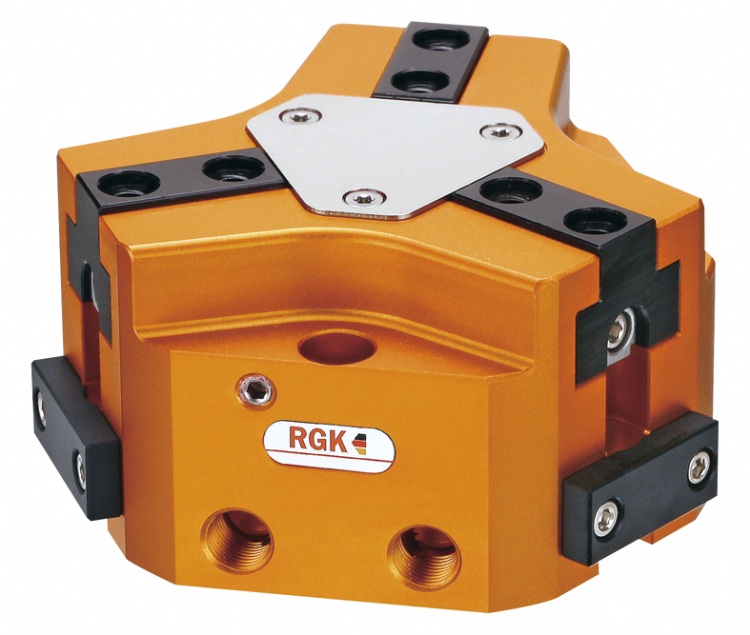

RZN CLASSIC 3-JAW CONCENTRIC GRIPPERS
Model: RZN+50 - RZN+300
Category: Automatic/Industrial Machines & Equipments / Automated Machinery & Equipments / Industrial Robots & Accessories
Characteristics
●Gripping force: 450-34150N
●Stroke per jaw: 4 – 30mm
●Types: RZN+50 – RZN+300
●Recom. workpiece weight: 2.2 - 170KG
●Max. finger length: 400MM, Repeatability: 0.03MM, won’t deform
●Aluminum shield can be applied to enhance the IP rating
●Slide made of sturdy T-slot with double piston design, can withstand more torque
●Can be used with an external mechanical SDV pressure safety valve to ensure that the gripper can continue to work when the air is lost
●High-temperature models are available (maximum up to 1000 ° C). Low-temperature, corrosion-resistant models also available on request
●Perfect with machinery production and suitable for automated production, assemble lines and clean automation environment.
