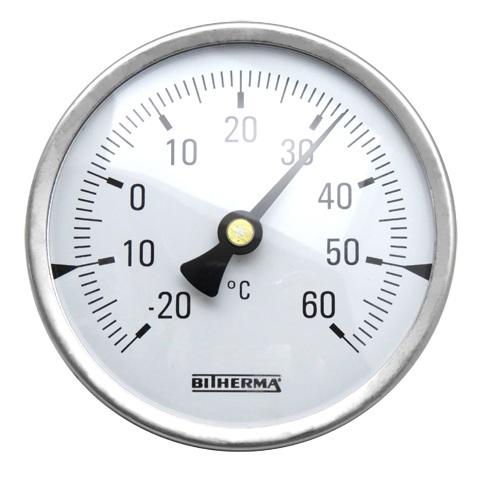

Pipe-Clamp Surface Thermometer
Model: BT-SM
Category: Automatic/Industrial Machines & Equipments / Industrial Machines / Thermometers
Characteristics
Features
¡½ Original imported from German BITHERMAL brand
¡½ Clamp on pipes surface with a spring instead of intrusive method
¡½ All stainless steel design
¡½ Clamp on 1¡¨-2¡¨pipes with spring to measure surface temperature
Specifications
Main Specifications
¡¿Size
Standard: 2.5”, 3”
Option: 2”, 4”
¡¿Window
PC (with raised edge)
With O-ring sealed
¡¿Temperature range
Please refer to temperature range table
Min.: -40°C
Max.: +400°C
¡¿Mount type
Back mount with spring
¡¿Spring size
4.9 x 92.3 mm
(For larger pipe diameter, larger spring size is available upon request)
¡¿Application
Clamp on 1”-2”pipes with spring
¡¿Protection level
IP 54
Other Specifications
¡¿Housing
Stainless steel
¡¿Bezel
Stainless steel
¡¿Back housing
Stainless steel
¡¿Pointer
Aluminum with black enamel
Adjustable pointer
¡¿Dial face
Aluminum with white enamel
All black scale
¡¿Measuring elements
Bi-metal spiral spring
¡¿Temperature accuracy
2%
¡¿Operating temperature
Stabilization: 3/4* full scale
Short-time: 1* full scale
