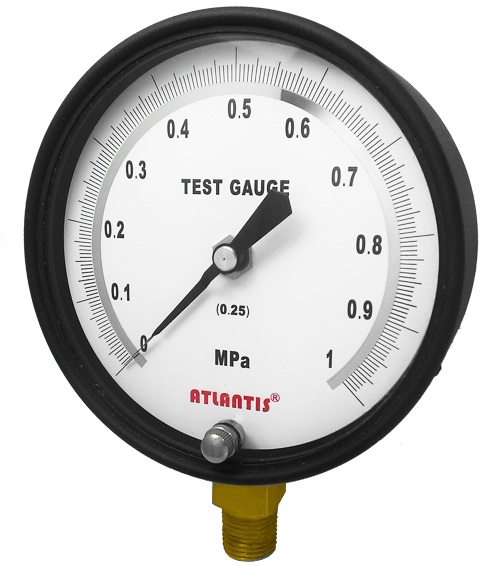

Precision Test Pressure Gauge (Aluminum Type)
Model: TPG-AL
Category: Automatic/Industrial Machines & Equipments / Industrial Machines / Pressure Gauges
Characteristics
Features
¡½ OEM service
¡½ Stainless steel case pressure gauge with high accuracy performance
¡½ Accuracy can up to 0.25%
¡½ Pointer adopts knife edge design, indicating the
reading accurately
Specifications
Main Specifications
¡¿Size
4.5”,6”
¡¿Installation type
Bottom mount (A)¡þ
Bottom mount with flange (B)
Bottom mount with flange
(Eccentric thread) (BDE)
¡¿Window
PC
Option:
Tempered glass / Safety glass
With O-ring sealed
¡¿Pressure connection
Material: brass / SS304
With O-ring sealed
Size: 3/8”,1/2”
Type: BSPT, NPT, PF
¡¿Pressure range
Gauge pressure¡¿
0…0.6 to 1000 bar
Negative pressure¡¿
-1…0bar
Compound pressure¡¿
-1…0 to 20bar
¡¿Applicable fluid
Liquid and gas that compatible
with connection’s material
¡¿Ambient temperature
5°C to 40°C
¡¿Fluid temperature
+40°C
¡¿Temperature error
Every ±12 °C
max. error: ±0.3% F.S
¡¿Protection level
IP54
Other Specifications
¡¿Ring
Aluminum with black enamel
¡¿Ring mount
Screw fixed
¡¿Case
Aluminum with black enamel
¡¿Pointer
Aluminum with black enamel
Knife edge design
¡¿Dial face
Special dial face for
precision readings
With external zero adjustment
Pressure unit, scale, color can
be customized upon requests
¡¿Measuring elements
Bourdon tube
Material: copper alloy / SS304
/ 50 chromium-vanadium steel
¡¿Movement
Copper alloy
¡¿Accuracy
0.4% (Standard) /
0.25% (Option)
¡¿Operating pressure
Stabilization: 3/4* full scale
Fluctuation: 1/2* full scal
