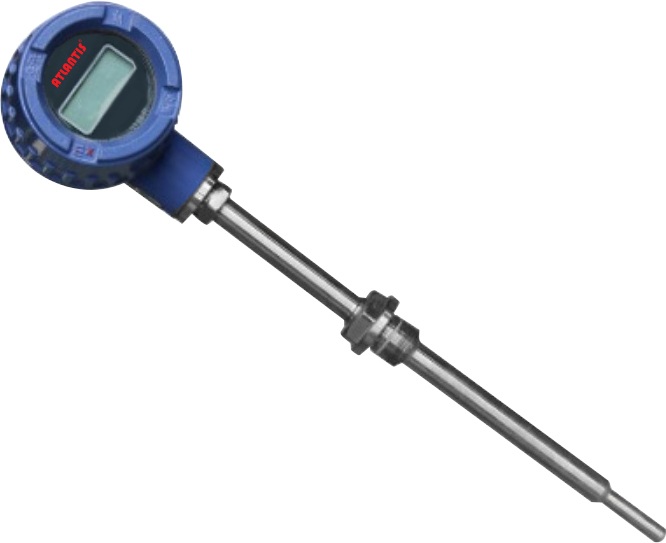

Integrated Digital Explosion-proof Smart Temperature Transmitter
Model: STT-WBS
Category: Automatic/Industrial Machines & Equipments / Industrial Machines / Others
Characteristics
Features
¡½ Adopts thermocouple¡þthermal resistance as measuring elements, wide temperature range
¡½ It generates linear 4-20mA output with temperature measurement
¡½ Shock and corrosion resistance
¡½ High accuracy and high stability
¡½ Anti-lightning, anti-RFI
¡½ 360¢Xrotatable LCD display head available
¡½ RS485 output or 4-20mA&HART output are available
¡½ Protection level: IP65, suitable for outdoor installation
¡½ Explosion-proof level: Exia II CT4-T6, Exd II BT4- T6 (Option)
Specifications
Main Specifications
¡¿Connection specification
DN20 PN10 flange
PN30 threaded flange
DN20 PN2.5 flange
Fixed female thread M16x1.5
Fixed thread M16x1.5
Fixed thread M27x2
¡¿Cable inlet thread
G1/2”
¡¿Temp. measurement range
-200~1800¢J
¡¿Output signal
4-20mA
¡¿Operating temperature
Explosion-proof type¡þwith display: -20¡ã50¢J
General¡þwithout display:
-40¡ã60¢J
¡¿Ambient humidity
5- 95 %RH
¡¿Protection level
IP65
¡¿Explosion-proof level (Option)
Exia II CT4-T6¡þ
Exd II BT4- T6
Other Specifications
¡¿Case material
Die casting aluminum
¡¿Screen display
LCD screen display
¡¿Digital display (Option)
RS485 Modbus¡þ
4-20mA + HART
¡¿Measuring elements
Thermocouple¡þ
thermal resistance
¡¿Sensor accuracy
±0.75% (Thermocouple)
±0.15+0.2%
(Thermal resistance)
¡¿Power supply
Standard: 24VDC
Option: 18~36VDC
¡¿Output load
0-550 Ω (@24V)
¡¿Error value
0.2% (Circuit signal conversion)
0.5%
(Head reading display error)
¡¿Other requests (Option)
Third party notarized documents
Inspection report
Tag
RS485 output
4-20mA+HART output
Intrinsic safety explosion:
Exia II CT4-T6
Flameproof level:
Exd II BT4- T6
