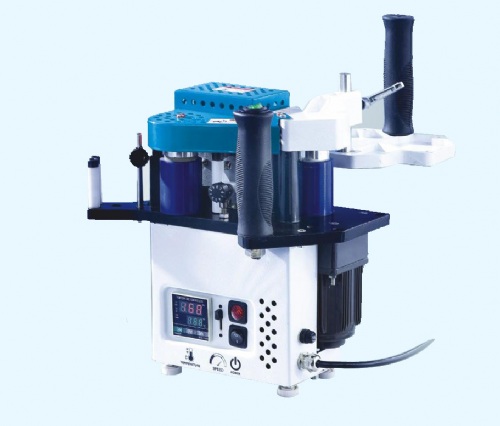

Portable Edge Bander
Model: 09 version
Category: Woodworking Machinery Industry / Others / Tools
Characteristics
Instruction:
1, The portable edge bander can finish wooden edge frames at straight edges, inside the arc, outside the arc, curve and circle, the radius of arc above 20mm.
2, The portable edge bander are using all types of banding at a wide range of widths and thinknesses, which can be melamine paper banding, wooden veneer, vinyl(PVC) self-adhesive edge banding. The thickness of the banding within 0.3-3mm. The edge band's minimum/ maximum width is 10-60mm.
3, The portable edge bander is light so it can be used for large sized wooden boards as well as incomplete wooden products. The boards as well as incomplete wooden products. The board can be fixed in place while the edge bander is in operation. The length of frame is not limited. It can also be used for small sized wooden boards where the machine is fixed onto a conveyor belt or table with a stand. The process of edge banding is the same as normal banding work.
4, The portable edge bander is suitable for medium to low temperature hot melt adhesives(melting point below 200 degree), the temperature of the tank can be controlled with adjustable temperature control according to different band thickness and material, the warm up time takes only 5 to 10 minutes.
5, The machine's speed is from 2-6 meters per minute.
6, All electronics components comply with UL and CSA certifications.
Specifications
Machine Net Weight: 9.2 kg
Packing 1 (single unit/ in carton) G.W: 15.4 kg
Packing 2 (Full set/ in metal box) G.W: 39.4 kg
Machine Size: 330x335x395 mm
Packing 1 size: 330x365x335mm
Packing 2 size: 460x430x510mm
Total Power usage 645W, with 20W motor
Heating Accessory Power 625W.
Hot Melt Adhesive Pot Volume: 320ml
Pre-heating Time: About 5-7 min.
Adjust Speed Control: 2 Meters - 6 Meters.
Power Supply: 220V/ 50HZ- 220V/ 60HZ, with three(two) - proing ground plug or 110V/60HZ signal - phase with three(two) - proing ground plug.
Accessories details:
Type 1 packing including:
a) Portable edge bander (x1)
b) Fixed machinery stand (x1)
c) Repair tools pack (x1)
d) Instruction book and DVD (x1)
Standard packing: Packed by export carton.
Type 2 packing including:
a) Portable edge bander (x1)
b) Fixed machinery stand (x1)
c) Electric edge trimming machine(x1)
d) Manual edge trimmer and Ending cutter tool set (x1)
e) Wooden board fixing sucker (x2)
f) Borders scale (x1)
g) Edge band knife (x1)
h) Repair tools pack (x1)
i) Troller with packing metal box (x1)
j) Instruction book and DVD (x1)
All products are with 1 year warranty after purchasing.
