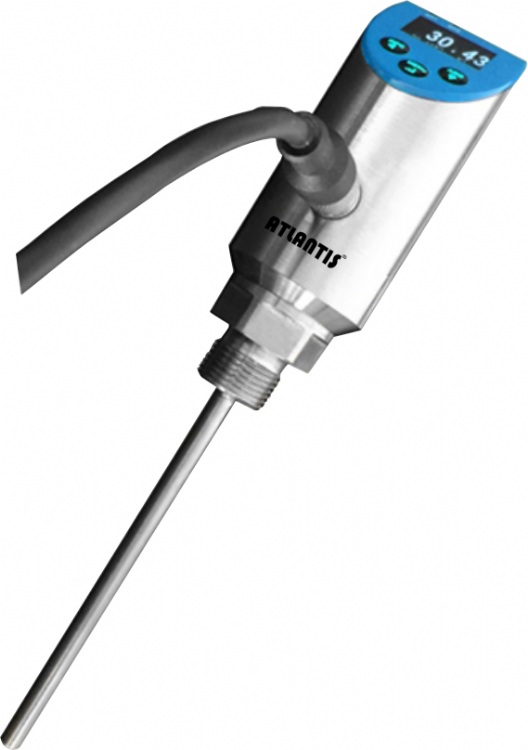

Digital Temperature Switch
Model: DTS-STS
Category: Automatic/Industrial Machines & Equipments / Testing Equipment / Inspecting/Measuring Instrument and Parts
Characteristics
Introduction
DTS-STS digital temperature switch equips 2-way switch alarm output, one analog signal output and OLED display screen, integrating temperature switch, transmitter and field display functions in one.
DTS-STS is suitable for industrial fluid temperature measurement, control and monitor such as cleaning liquid, coolant, hydraulic oil and lubricants.
Features
¡½ Integrating temperature switch, transmitter and display functions in one design
¡½ 5-digit OLED high brightness screen display
¡½ 3 large touch buttons with backlight design, user-friendly parameter setting
¡½ 2-way PNP switch output
¡½ Adjustable actuation point, switchable switch mode (normally open¡þnormally closed)
¡½ Various analog outputs available, user-adjustable zero & span value
¡½ RS485 output (option)
¡½ Switchable display mode:
Pipeline temp. display , max. / min. temp. display, ambient temp. display
¡½ 330¢XRotatable meter, 180¢Xflip screen
¡½ Temperature measuring range: -50~260¢J
¡½ Protection level IP65
Specifications
Main Specifications
¡¿Process connection
Material: stainless steel
Welded structure
M20x1.5 male thread
M27x2 male thread
G1/2”male thread
Other thread type available
upon request
¡¿Electrical connector
M12x1 5-pin
M12x1 8-pin (for RS485)
¡¿Screen display
5-digit OLED high brightness
display
¡¿Alarm output
2-way PNP
Two sets red LED warning light
¡¿Analog output
Current output¡¿
4~20mA¡þ0~20mA
Voltage output¡¿
0~5VDC¡þ0~10VDC
¡¿Digital output (option)
RS485
¡¿Temp. measurement range
-50 to 260¢J
¡¿Stem
Outer diameter: Ø6mm
Length: 50mm (standard)
Other stem length available
upon request
¡¿Applicable media
Liquid and gas that compatible
with stainless steel
¡¿Operating temperature (body)
-30 to 80¢J
¡¿Storage temperature
-40 to 80¢J
¡¿Protection level
IP65
Other Specifications
¡¿Case
SS304
¡¿Power supply
12-30VDC
¡¿Temperature unit (Fixed)
¢J¡þ¢K¡þK
¡¿Screen resolution
±0.01¢J
¡¿Switch type
N.O.¡þN.C.
(Custom setting available)
¡¿Contact rating
Max. 1.0A
¡¿Switch operating mode
Hysteresis mode¡þ
Window comparator mode
¡¿Response time
<10ms
¡¿Switch delay setting
0.00s~1000.0s
¡¿Measuring elements
Pt1000
¡¿Refresh rate
≤ 5secs
¡¿Accuracy
≤±0.5¢J F.S.
¡¿Temperature drift
±0.15%/10k
¡¿Stability
±0.3% F.S./year
¡¿Vibration resistance
≤10g/10Hz…500Hz
¡¿Impact resistance
≤50g/11ms
