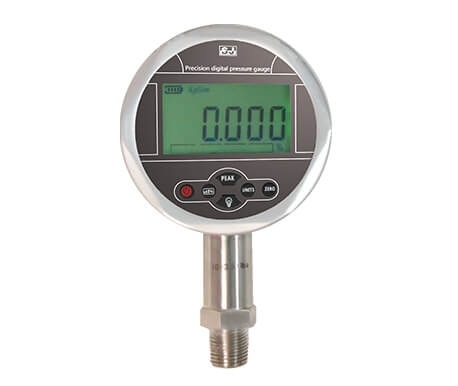

High precision electronic digital pressure gauge
Model: MXP
Category: Automatic/Industrial Machines & Equipments / Industrial Machines / Pressure Gauges
Characteristics
Features:
1. For calibration, the precision is up to 0.025%
2. Can be charged with Micro-B connector (android charging cable)
3. Fan-shaped range analog pointer prevents overpressure
Specifications
Size 115 mm Pressure range -1 ... 5~0 ... 1000 bar Connection size 1/2" PT, wetted stainless steel Pressure source temperature -10oC~80oC Precision Standard 0.05% F.S. Optional 0.025% F.S. Temperature compensation -5oC~50oC Measuring range 75% of full scale Overvoltage limit 30% pressure range up to 600kg/cm2 15% when the pressure range is higher than 600kg/cm2 Shell Aluminum alloy nickel plating Tooth mouth 316 stainless steel Sensing medium Silicone Sensor element medium PH grade steel Screen display Five digital display with backlight Panel material PVC power supply Rechargeable, lithium battery Battery Life About 2000 hours Character size 20mm refresh speed 2ms Screen LCD display screen Pressure unit MPa, kg/cm2, KPa, psi, bar, mH2O, mmHg
