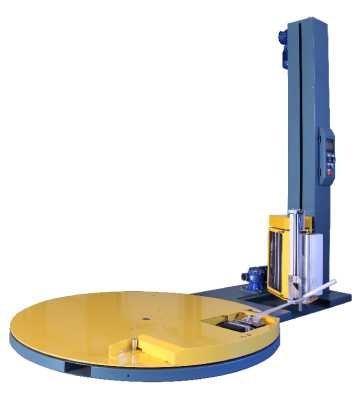

Automatic Stretch Wrapper
Model: GQW101
Category: Packaging, Printing, Food & Pharmacy Machinery / Packaging Machinery / Other (Packaging Machine)
Characteristics
1. PLC with the inverter controls motor.
2. Patented clamp-film / stick-film mechanism for automatic process to reduce working time.
3. Remote start to save the operator's time to go back and forth from the forklift.
4. It can stick the film tails directly. The film tails won't peel off and the wrapping finishing is tight and tidy.
5. The turntable is driven by the belt, which makes it turning in no noise, stable and smooth.
6. The film carriage has the patented anti-drop device to ensure safety.
7. The speed of the turntable and the film carriage can be adjusted by the inverter.
8. The turntable has soft start / stop to ensure safety.
9. Fast film loading.
10. The turntable can be positioned to the origin automatically.
11. It can be switched to manaul or auto mode.
12. Controlled by touch screen (HMI / MMI).
Specifications
Model | GQW101 Automatic Stretch Wrapper |
Machine size (mm) | L3220 x W1810 x H2440 |
( Spec. subject to change without prior notice. ) | |
Turntable dia.(mm) | 1800 (Optional: Customized size is available) |
Turntable height(mm) | 86 |
Max. load weight(kg) | 1500 (Optional:2000) |
Max. wrap height(mm) | 2000 |
Film carriage speed | 3 M/min (Adjustable) |
Turntable speed | 12 RPM (Adjustable) |
Film pre-stretch | 200% (Standard) |
Optional | Ramp |
Voltage | 1Φ 220V |
(Depend on customer's request.) | |
Applicable film | PE 20~30μ |
