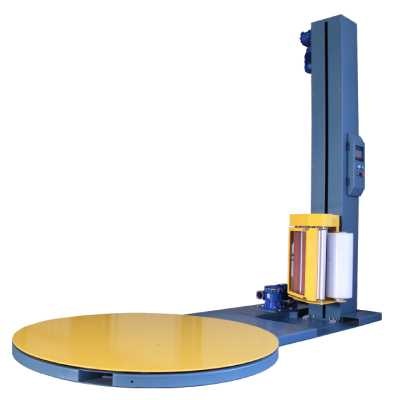

Standard Stretch Wrapper
Model: GQW103
Category: Packaging, Printing, Food & Pharmacy Machinery / Packaging Machinery / Other (Packaging Machine)
Characteristics
1. PLC with the inverter controls motor.
2. The turntable is driven by the belt, which makes it turning in no noise, stable and smooth.
3. The film carriage has the patented anti-drop device to ensure safety.
4. The speed of the turntable and the film carriage can be adjusted by the inverter.
5. The turntable has soft start / stop to ensure safety.
6. Fast film loading.
7. It can be switched to manaul or auto mode.
8. Controlled by control panel.
9. The sensor detects the packing height automatically.
Specifications
Model | GQW103 Standard Stretch Wrapper |
Machine size (mm) | L2820 x W1520 x H2440 |
( Spec. subject to change without prior notice. ) | |
Turntable dia.(mm) | 1500 (Optional: Customized size is available) |
Turntable height(mm) | 82 |
Max. load weight(kg) | 1500 (Optional:2000) |
Max. wrap height(mm) | 2000 |
Film carriage speed | 3 M/min (Adjustable) |
Turntable speed | 12 RPM (Adjustable) |
Film pre-stretch | 200% (Standard) |
Optional | Ramp |
Voltage | 1Φ 220V |
(Depend on customer's request.) | |
Applicable film | PE 20~30μ |
