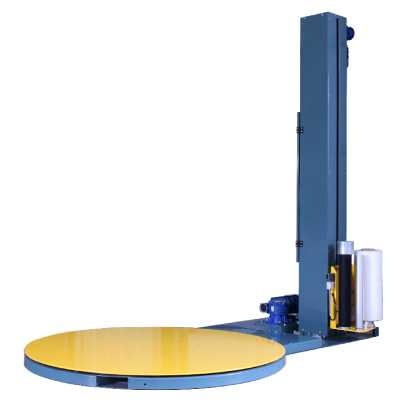

Semi-Auto Wrapper (Electronic)
Model: GQW104
Category: Packaging, Printing, Food & Pharmacy Machinery / Packaging Machinery / Other (Packaging Machine)
Characteristics
1. PLC with the inverter controls motor.
2. The turntable is driven by the belt, which makes it turning in no noise, stable and smooth.
3. The film carriage has the patented anti-drop device to ensure safety.
4. The speed of the turntable and the film carriage can be adjusted by the inverter.
5. The turntable has soft start / stop to ensure safety.
6. It can be switched to manaul or auto mode.
7. Controlled by control panel.
8. The sensor detects the packing height automatically.
9. Electronically adjust the tension and the tightness of the stretch film.
10. Manually fix the film to the pallet first and then turn on the wrapper.
11. Separate 1~9 top and bottom wrap count is adjustable.
Specifications
Model | GQW104 Semi-Auto Wrapper (Electronic) |
Machine size (mm) | L2820 x W1520 x H2440 |
( Spec. subject to change without prior notice. ) | |
Turntable dia.(mm) | 1500 (Optional: Customized size is available) |
Turntable height(mm) | 82 |
Max. load weight(kg) | 1500 (Optional:2000) |
Max. wrap height(mm) | 2000 |
Film carriage speed | 3 M/min (Adjustable) |
Turntable speed | 12 RPM (Adjustable) |
Optional | Ramp |
Voltage | 1Φ 220V |
(Depend on customer's request.) | |
Applicable film | PE 20~30μ |
