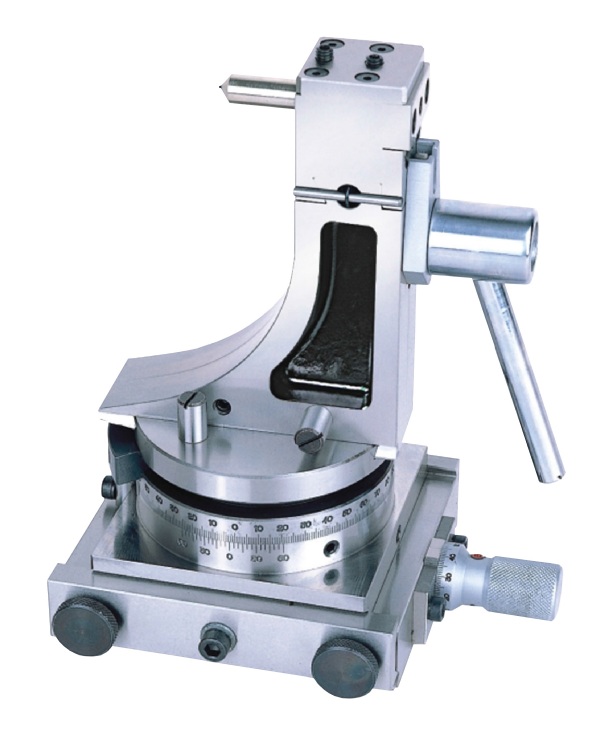

UNIVERSAL GRINDING WHEEL DRESSER
Model: GRINDING WHEEL DRESSER
Category: Machine Tools / Tools, Cutters, Mold & Dies / Grinding Wheels
Characteristics
1. The wheel dresser suitable for surface grinder, universal tool grinder to get the desired concave and convex angles.
2. Center Height¡G193 mm
3. Measuring quasi-pin¡GØ 10 mm
4. Max. swing distance of diamond cutter¡G¡Ó 14 mm
5. Applicable maximum wheel diameter¡GØ 200 mm
6. Graduation¡G5'
7. Max. feed movement¡G25 mm
8. Feed graduations of handle scale¡G0.01 mm
9. Max. dressing convex arc¡G50 R
10. Concave arc dressing range¡G0 ~ 100 R
Specifications
1. The wheel dresser suitable for surface grinder, universal tool grinder to get the desired concave and convex angles.
2. Center Height¡G193 mm
3. Measuring quasi-pin¡GØ 10 mm
4. Max. swing distance of diamond cutter¡G± 14 mm
5. Applicable maximum wheel diameter¡GØ 200 mm
6. Graduation¡G5'
7. Max. feed movement¡G25 mm
8. Feed graduations of handle scale¡G0.01 mm
9. Max. dressing convex arc¡G50 R
10. Concave arc dressing range¡G0 ~ 100 R
