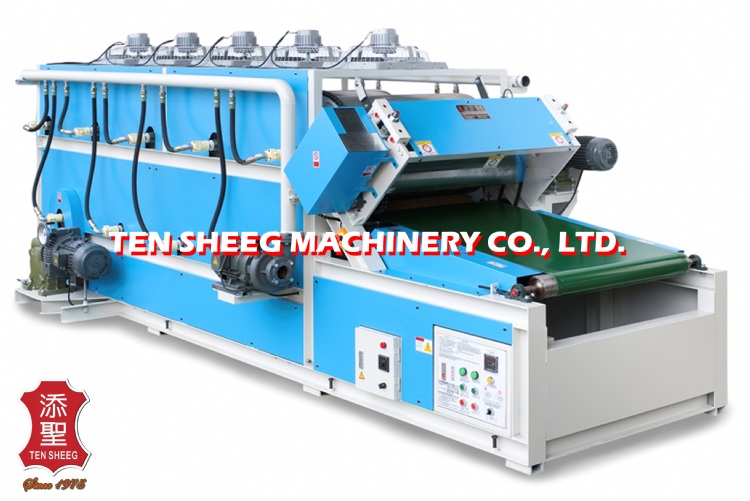

Water cooling auto slicing machine
Model: MC-96
Category: Plastic and Rubber Industry / Rubber Processing Machinery / Other Rubber Processing Machines
Characteristics
1. Special guiding device guides material to cooling drums automatically.
The whole process from cooling to slicing is fully automatic. No operator involved to reduce risk of danger greatly.
2. The surfaces of cooling drums are made by stainless steel. Two layers cooling drums provide double cooling effect.
3. This machine applies cold cutting functions:
(a.) No electric heater is used on machine. Solve old cutting problem caused by the insufficient electric heating temperature and poor electricity conduct defect caused by dust on electric heating structure. Solve damage problem on front and rear end of working piece caused by electric heater temperature.
(b.) Solve problem of old electric heating cutter such as waste material, labor and time. Old heating cutter might cause burnt mark on the front and rear portions when cutting. Then operator needs to cut off the burnt mark manually.
4. The cutting length setting is done by counter. High precision to reduce cutting length error.
5. Not cutting material on conveyor to avoid falling off threads of conveyor stuck on material, then cause bubbled and affect forming quality.
6. Every cooling drum is equipped with a cleaning brush. It can provide continuous cleaning during operation to keep material clean.
7. Optional input material temperature detector
8. Optional output material temperature detector
