桌上型脆盤打包機

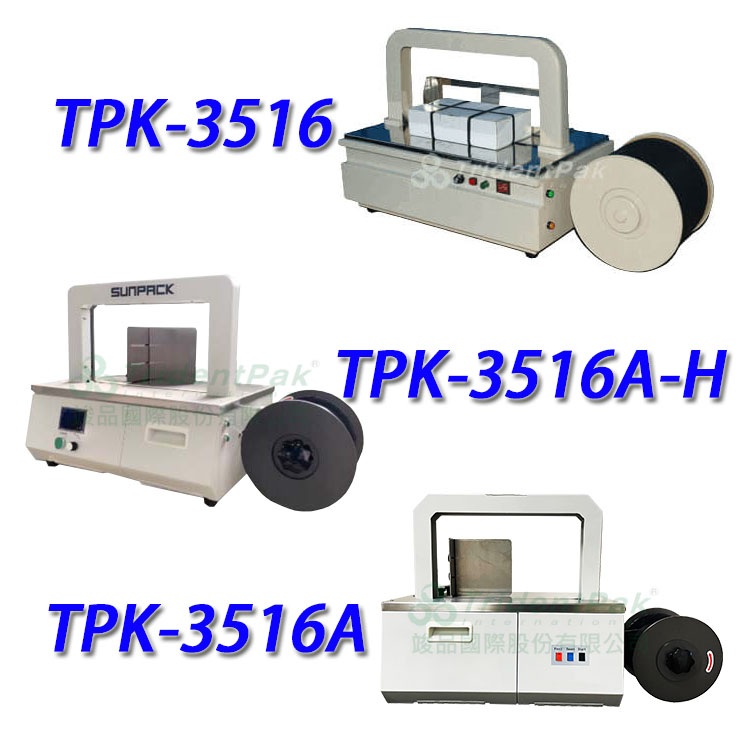

Model: TPK-PS3516 / TPK-3516A / TPK-3516A-H
Category: Packaging, Printing, Food & Pharmacy Machinery / Packaging Machinery / Overwrapping Machines
Characteristics
主要是在桌子上的空間使用,非常方便且保證打包物件在運輸、貯存中不因捆紮不牢而散落,同時還使捆扎整齊美觀。可使用打包帶/捆綁帶,打包帶包括PP自動帶、PP抗靜電帶、PP導電帶等。此捆包機具有每分鐘打包20條打包帶的能力,專門用來打包脆盤的打包機,也可使用在小物捆紮,例如:小件包裝物,禮品盒或文書雜誌類捆包、脆盤打包。
Specifications
項目 |
|
---|---|
電源 |
AC220V 50/60 HZ |
打包帶寬度 |
8 mm |
設備尺寸(mm) |
760(L) x 305(W) x 406(H) |
設備重量 |
25 Kg |
拉力 |
3~7 Kg(可調式) |
黏帶方式 |
熱刀黏接 |
產品可包裝重量 |
5 Kg以下 |
捆包時間 |
20條/分 |
項目 |
|
---|---|
最大打包範圍 |
360mm×200mm |
最小打包範圍 |
50mm×10mm |
束帶尺寸 |
100mm(ID) ×170mm(OD) ×150mm(W) |
束帶規格 |
(寬)7.5~8mm X (厚)0.35mm~0.65mm |
黏帶方式 |
超音波黏接 |
束緊力 |
50-120N |
打帶速度 |
Min.14條/分 |
設備尺寸 |
(長)812mm × (寬)405mm × (高)520mm |
面板語言 |
英文 / 繁中 |
電壓 |
110/220V 50/60HZ |
功率 |
500W |
重量 |
45kg |
控制方式 |
電路板 |
項目 |
|
---|---|
最大打包範圍 |
360mm×200mm |
最小打包範圍 |
50mm×10mm |
束帶尺寸 |
100mm(ID) ×170mm(OD) ×150mm(W) |
束帶規格 |
(寬)5~6mm或7~8mm或9~12mm X (厚)0.45mm~0.75mm |
黏帶方式 |
熱刀黏接 |
束緊力 |
Max. 40kg |
打帶速度 |
Min. 18條/分 |
設備尺寸 |
(長)800mm × (寬)405mm × (高)520mm |
面板語言 |
英文 / 繁中 |
電壓 |
110/220V 50/60HZ |
功率 |
500W |
重量 |
45kg |
控制方式 |
電路板 |
桌面高度 |
222mm |
詳情請至官網 : https://www.tridentpak.com.tw/cweb/
