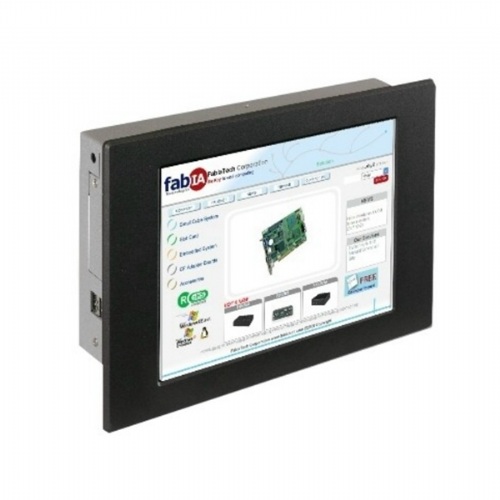

Panel PC
Model: FP8081BT
Category: Automatic/Industrial Machines & Equipments / Automated Machinery & Equipments / Automatic Control Systems
Characteristics
8.4" C-M 600M Panel PC w/1S, VGA, 1Giga-LAN, 4USB, Audio, CF/mPCI Socket and Touch Screen
Specifications
Function Items FP8080BT LCD Panel Monitor Type 8.4" TFT LCD Touch Screen Yes Resolution 800 x 600 Pitch 0.213(H) x 0.213(V) Viewing Angle (H/V) 65°/65° Response Time 10/25 msec Contrast Ratio 450:1 Brightness 200 cd/㎡ Color Support Native 262K (RGB 6-Bit Driver) CPU Board INTEL 910GMLE + ICH6 Processor Celeron-M 600MHz DRAM 1GB DDR2 DRAM Socket 200-Pin SoDIMM *1 (DDR2, 2GB Max) I/O Connector KB/Mouse Yes Serial RS232/422/485 *1 Parallel - USB 4 (2.0) LAN Giga LAN *1 VGA CRT Dual Display - Audio Yes GPIO - BUS I/F Mini-PCI Slot *1 Storage Bay CF Slot 1 HDD Space 2.5" *1 (SATA) Power Required Input Voltage DC 12~24V Rated Current 38VA Max Operation System Windows 2K / XP / XPe, and Linux Operation Environment Temperature 0°C to 50°C (32℉ to 122℉) Compliances CE / FCC / IP65 / RoHS Dimension (W x D x H) 250 x 55 x 180 mm
