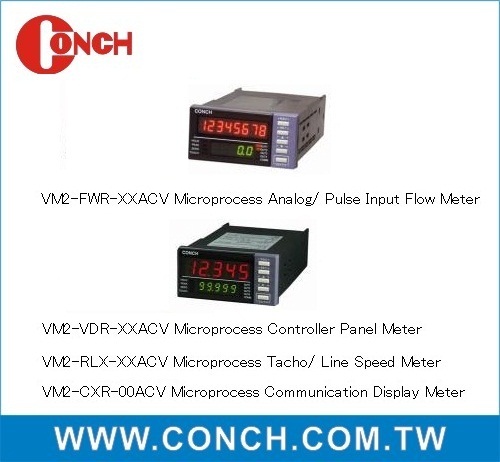

Microprocess Control Panel Meter
Model: V(I)F, V(I)U, VM2
Category: Automatic/Industrial Machines & Equipments / Industrial Machines / Parts and Accessories for Industrial Machinery
Characteristics
V(I)F-40/50: 3 1/2 & 4 1/2 Analog Indicator
V(I)U-41P/42P Preset Panel Meter with DIP Switch
V(I)U-51K~53K Keyboard Preset Panel Meter
VM2-XXR-XXACV Microprocess Controller Panel Meter
VM2-RLX-XXACV Microprocess Tacho/ Line Speed Meter
VM2-FWR-XXACV Microprocess Analog/ Pulse Input Flow Meter
VM2-CX*-00ACV Microprocess Communication Display Meter
Specifications
V(I)F-40/50: 3 1/2 & 4 1/2 Analog Indicator
1. Signals input can be AC/DC voltage or from resistive sensor
2. The units can be changed into A(ampere), V(volt), mA (milli-ampere), M/Min or RPM
3. 0.8" LED makes display each to read
4. Percentage, offset and decimal place are settable
V(I)U-41P/42P Preset Panel Meter with DIP Switch
1. w/ DIP switch, capable of measuring in various signals, such as voltage, current, load cell and potentiometer
V(I)U-51K~53K Keyboard Preset Panel Meter
1. Capable of measuring various singals such as voltage, current, load cell, potentiometer, etc
2. OUTPUT MODE can be programmed as well
VM2-XXR-XXACV Microprocess Controller Panel Meter
1. Display range: -19999 ~ 99999, can be adjusted by preference with learning function (TEACH)
2. Can display measured value and set value, or peak value at the same time
3. Highly stable with AC/DC 90 ~ 260V power supply
VM2-RLX-XXACV Microprocess Tacho/ Line Speed Meter
1. Display range: 0 ~ 99999, can be adjusted by preference
2. Highly stable with AC/DC 90 ~ 260V power supply
3. Three comparing modes for option. Hysteresis is settable
VM2-FWR-XXACV Microprocess Analog/ Pulse Input Flow Meter
1. Able to calculate square root of the rate value (analog input)
2. Display range:0~99999999 (total value); 0~99999 (rate value), adjustable by preference
3. Digit Height: 0.36" Red (total value); 0.3" Green (rate value)
4. Sampling Time: 28~56 times/sec.(analog input); 50~999ms(pulse input/NPN)
VM2-CX*-00ACV Microprocess Communication Display Meter
1. Display range: -19999~~99999
2. Can display measured value, set value or peak value at the same time
3. Highly stable with AC/DC 90 ~ 260V power supply
