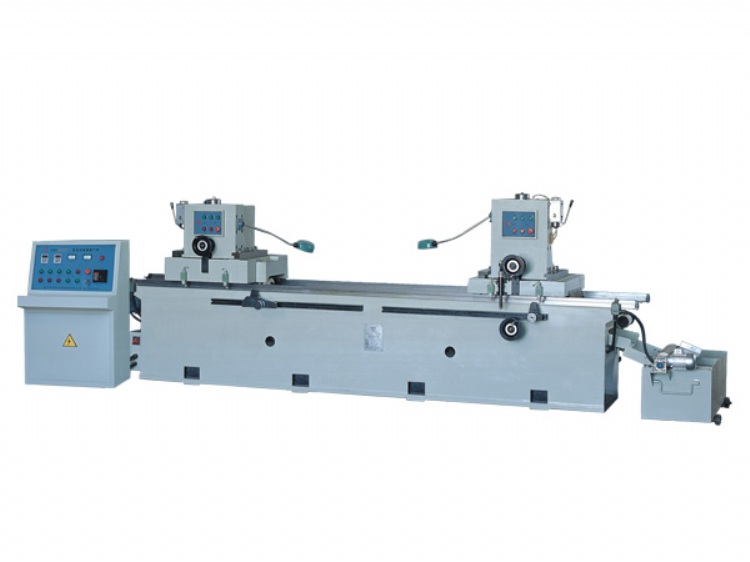

DMSQ-1600F(CE)Multifunction Environmental Protection Grinder Multi function knife sharpener
Model: DMSQ-1600F
Category: Packaging, Printing, Food & Pharmacy Machinery / Printing Presses / Other Printing Machines
Characteristics
Multifunction Environmental Protection Grinder Model DMSQ-F
Multifunction Environmental Protection Grinder Model DMSQ-F is the Tianming-company under 20 years on sharpener manufacturing history, absorbing, and actively attract domestic and foreign various advanced sharpening techniques, and developed a set of grinding, polishing, auto cleaning, closing residue 4 function in one large New high-end advanced sharpening equipment practical.
Multifunction Environmental Protection Grinder Model DMSQ-F’s powerful, advanced design, energy saving, nice shape, safe and convenient operation, high grinding precision, high efficiency, leading the industry in the international scientific and technological level sharpener, patented equipment for the Tianming-company.
Multifunction Environmental Protection Grinder Model DMSQ-F is particularly suitable for grinding centers, large books, printing and other institutions and enterprises to use.
Multifunction Environmental Protection Grinder Model DMSQ-F Main function/Technical parameters
● Water-cooled motor grinding wheel head: German East Y series three-phase asynchronous motor
● Polishing grinding head: German East Y series three-phase asynchronous motor
● Grinding head can move back and forth
● Maximum grinding width:taken 22°as final 300 mm
● Frequency Control (travel mobile)
● Automatic feed grinding
● Wheel Chain Transmission
● Gantry body
● Magnetic chuck tool holder table
● Worm drive tool holder
● Table rotation angle: 0∼±90°
Multifunction Environmental Protection Grinder Model DMSQ-F Main technical parameters
Wheel Size-------------------------------------------------------------Cylindrical Φ200×Φ150×100(Φ300×Φ250×100)mm
Maximum grinding width--------------------------------------------taken 22°as final 300 mm
Effective height of the grinding wheel and table--------------80 mm
Table rotation----------------------------------------------------------0∼±90 °
Grinding rotation speed--------------------------------------------Adjustable Frequency
Grinding movement speed----------------------------------------3∼15 m/min (Adjustable Frequency)
Movement electromotor power-----------------------------------0.55 KW
Grinding head motor power---------------------------------------3(7.5) KW
Pump motor power--------------------------------------------------0. 25 KW
Specifications
Multifunction Environmental Protection Grinder Model DMSQ-F Main Function Deployment (excerpt)
● Location rolling linear guide rail
● Centralized refueling device
● Knife debris removal equipment
● Automatic cleaning device
● Java equipment automatically receive
● Imported electrical components (optional device)
● Scraper jig (optional device)
-----------------------------------------------------------------------------------------------------------------
