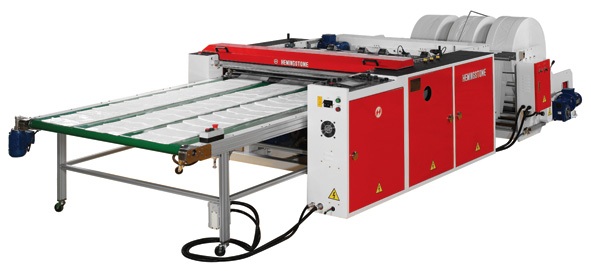

Fully Automatic Bottom Sealing Bag Making Machine with Flying Knife System
Model: HM-1400FB
Category: Plastic and Rubber Industry / Machinery for Processing Plastics / Plastic Bag Making Machines
Characteristics
HIGH SPEED BOTTOM SEALING BAG MAKING MACHINE BY FLYING KNIFE SYSTEM
Using the design by flying knife cutting off, the knife is easy to be replaced.
The sealing design is heated by two-sided heating lines, to achieve a strong sealing line.
Providing multi producing lines for non-printing bag.
The bag sending design providing the non-overlapping sealing line system(This design isn't included in the two servo motors series).
Optional for surface friction unwind device with auto lift-up unit.
Optional for two servo motors of film sending to make two lines printing bag.
Other options: punching unit; V-type sealing etc.
Specifications
Model |
HM-1400FB |
|
Bag Size (mm) |
Width(Each line) |
1300 |
Length |
200~3000 |
|
production Speed Cycle/Min |
90 |
|
Thickness of Film (mm) |
0.02x2~0.25x2 |
|
Heaters |
1.2KW |
|
Power Required |
9KW |
|
Machine Dimensions |
L(M) |
7.3 |
W(M) |
2.2 |
|
H(M) |
1.3 |
|
Machine weight(KG) |
2300 |
|
Gross Weight(KG) |
2900 |
|
Air Compressor(not included) |
5HP |
