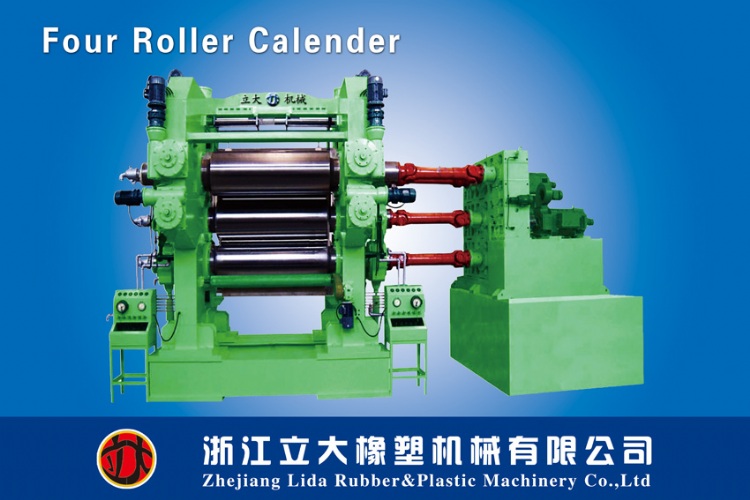

Four roller calender
Modeeel: Φ610×1900 / Φ610×2030 / Φ660×2500 / Φ710×2800
Industry: Plastic and Rubber Industry / Rubber Processing Machinery / Other Rubber Processing Machines
Supplier; ZHEJIANG LIDA RUBBER & PLASTIC MACHINERY CO., LTD.
Booth No: 143
Characteristics
Application: The calender is cooperated with suitable accessories used for PVC resin calendering film, sheet, calcium-plastics sheet, leatherette and coating film on the synthetic fabric-base etc.
★Feature:
①The rolls are made of chilled cast iron. As for bored roll, the cavity of roll by machine work and roll neck bearing is plain bearing. As for drilled roll, roll neck bearing is ball bearing.(selected both imports and native)
②To be ensure calendaring product precision, it’s designed with crown roll, axial cross device, and pre-bending device etc., which selects for consumer.
③For the heat of roll working surface, the bored roll is adopted with steam, the roll temperature is depend on steam pressure. But the drilled roll is adopted with hot-oil cycle, the temperature achieves 180~200℃.
Specifications
|
型号Model 项目Project |
SY610×1900 |
SY610×2030 |
SY660×2500 |
SY710×2800 |
|
辊筒规格 Roll specification(mm) |
Φ610×1900 |
Φ610×2030 |
Φ660×2500 |
Φ710×2800 |
|
辊筒线速度 Roll speed(m/min) |
40-100 |
40-100 |
50-120 |
50-120 |
|
辊筒排列形式 Layout of the roll |
倒L型、逆L型 |
|||
|
压延制品厚度 Thickness of calendaring product(mm) |
0.08-1 |
0.08-1 |
0.08-1 |
0.08-1 |
|
压延制品宽度 Width of calendaring product (mm) |
1500 |
1600 |
2100 |
2300 |
|
主电机功率 Main motor power(kw) |
200 kw 45kw2台 55kw2台 |
260 kw 55kw2台75kw2台 |
330 kw 75kw2台90kw2台 |
400 kw 90kw2台110kw2台 |
