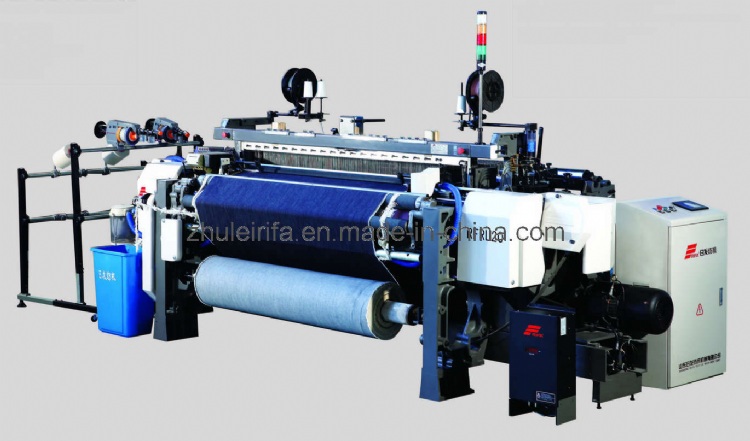

RFRL20 High speed rapier loom
Modeeel: RFRL20
Industry: Textile, Sewing, Garment Machinery & Industrial Equipments / Textile Machinery / Shuttleless Looms
Supplier; SHANDONG RIFA TEXTILE MACHINERY CO., LTD
Booth No: 785
Characteristics
RFRL20 high speed rapier loom is developed from the existing advanced rapier loom technology of Shandong Rifa Textile Machinery Co.,Ltd. It’s designed for power saving, high speed & high efficiency, low vibration & low noise. RFRL20 adopts super direct motor with function of stepless speed change. More than 15% ower can be saved than normal motor. It shows great performance on high-speed, low vibration and power saving. RFRL20 high speed rapier loom is one of the best choices for economic weaving.
Specifications
|
RFRL20 high speed rapier loom performance data |
|
|
Speed： |
420~450rpm |
|
Power consumption: |
main motor：11kw super motor |
|
Total consumption:﹤5kw(super motor) |
|
|
Yarn range: |
cotton and man-made fiber yarn: 500tex(1.2Ne)~ 5tex（120Ne） |
|
slub and worsted: 680tex(1.5Nm)~10tex(100Nm) |
|
|
filament: 10dtex(9Td)~1650dtex(1500Td) |
|
|
fabric weight:20~700g/m2 |
|
|
Weft insertion rate： |
1200m/min |
|
Weft density: |
5~120 picks/cm |
|
Cloth roller dia: |
φ550mm （in machine） |
|
φ1200mm (independent take-up) |
|
|
Beating: |
Conjugated cams with double drive on both sides |
|
Weft insertion: |
Sley driven by conjugated cams |
|
Lubrication: |
Bath oil & pressure oil |
|
Stop motion: |
Warp yarn:6 line electronic contact stop motion |
|
Weft yarn: electronic high-sensitive piezoelectricity inspection |
|
|
Stop display: the screen & 4-colour led stop lights show stop reason |
|
|
Electronic control: |
Functional CPU controlling system can control, scout, auto diagnosing, information showing. Display: big LCD screen showing bidirectional communication, button operation, instant adjustment/ parameter setting programming |
|
Auto function: |
automatic point stop/auto pick-finding/cloth fell, auto-compensation/auto warp tension adjustment/auto inspection/auto reposition/auto fault display. |
