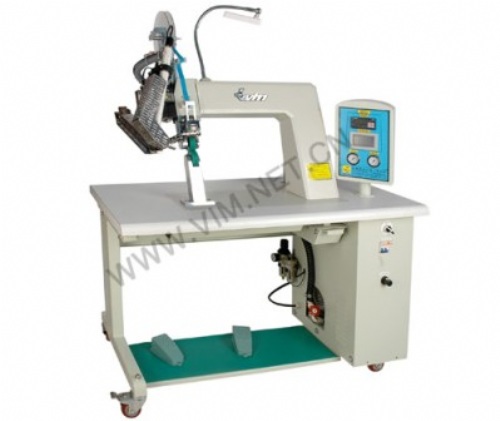

V-6 Hot air seam sealing machine
Modeeel: V-6
Industry: Textile, Sewing, Garment Machinery & Industrial Equipments / Textile Machinery / Other Textile Machines
Supplier; Jiangmen VIM Machinery Co., Ltd
Booth No: 1029
Characteristics
==Product Features==
1. Controlled by programmable PLC with HMI soft-touch display, process can be modified according to users' requirements.
2. Auto controllable temperature with high stability slightly varies between±2℃. Warning device for temperature upper limit is installed to protect heating wire.
3. It has the functions of synchrodrive of the upper and lower wheel chain, auto compensation, and auto reverse.
4. Double pedal control is designed according to human mechanics, simple and comfortable, suitable for long-time operation.
5. It is possible to work 24 hours continuously with high efficiency.
6. Blowing-in wind can be filtrated without oil or water by unique heater tube.
7. Auto reverse function to save more.
8. The functions of auto tape clipping, sending and finishing reduce the wastage of raw material.
9. Super large operation room
10. Super-thin lower column is suitable to sealing product with various sizes.
Specifications
V-6
==Technical parameter==
Power supply: AC 220V 50Hz
Rating efficiency: 2800W
Heat control: Room temperature ∼700℃；adjustable without bands
Speed: 1~18m/min infinitey varible
Air supply: 0.35~0.5 Mpa
Width of pinch roller: Standard: 25mm mill finish, steel grain, straight grain to be chosen according to demand
Width of seam sealing tape: 14mm-22mm standard, others are available according to requirements
Upper roller lift: 18 mm~25 mm
Exterior size: 1300mm(L)，600mm(W)，1530mm(H)
Net weight: 167kg
