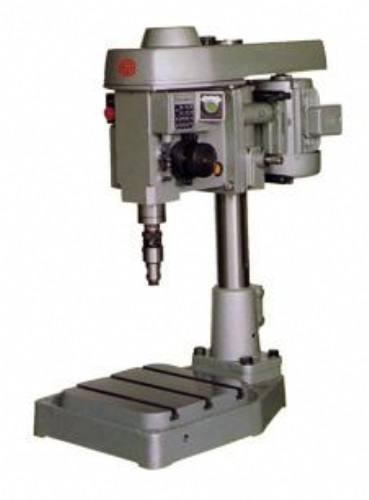

Precision Automatic Tapping Machine (Vertical type)
Modeeel: GT2-223
Industry: Machine Tools / Others / Other Machinery
Supplier; NEW CHAIN-TONGS CO., LTD. ATOLI MACHINERY CO., LTD.
Booth No: N/A
Characteristics
.
Specifications
*Spindle stroke maxi. mm 65
*Lathe swivel dia. mm 430
*Gear tooth dia. mm 5Ø-16Ø
*Vertical travel distance of headstock mm 300
*Distance between spindle end and table maxi. mm 470
*Table size mm 340X340
vBase area mm 580X425
*Motor 3phases 6P 750W(1HP)
*SPINDLE RPM 50HA 515/285/155
60HZ 620/340/190
*AUTO FEEDING GEARED DISTANCE APPLICABLE TO THIS MACHINE
Teeth/inch 28,24,20,19,18,16,14,12,11,10
mm 0.7,0.8,0.9,1.0,1.25,1.5,1.75,1.8,2.0,2.5
*Multi-shaft max. capacity(m/mstandard pitch)
6 Ø x 9 Axes/8 Ø x 4 Axes/12Ø x 2 Axes
