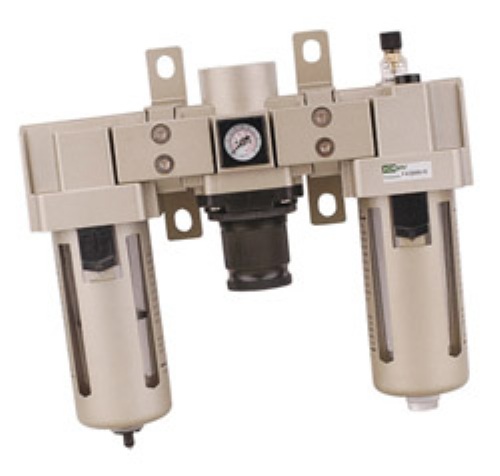

Air Filter Combination (F.R.L Combination)

Modeeel: FAC300N-02.03 F.R.L Combination

Industry: Machinery Parts and Components / Hydraulic and Pneumatic Components / Filters, Regulators, and Lubricators for Pneumatic Equipment

Supplier; Fonray Enterprise Co., Ltd.

Booth No: I701

Characteristics

Air Filter Combination (F.R.L Combination)

Specifications

Air Filter Combination (F.R.L Combination)

Model FAC200N-01 FAC200N-02 FAC300N-02 FAC300N-03 FAC400N-03 FAC400N-04 FAC500N-06 FAC500N-08
Rated Flow 500 500 1700 1700 4000 4000 5000 5000
Model FAC201N-01 FAC201N-02 FAC301N-02 FAC301N-03 FAC401N-03 FAC401N-04 FAC501N-06 FAC501N-08
Rated Flow 500 500 1700 1700 4000 4000 5000 5000
Joint Pipe Bore 1/8" 1/4" 1/4" 3/8" 3/8" 1/2" 3/4" 1”
Filter Precision 25µm
Highest Working Pressure 1.0Mpa
Ensured Pressure Resistance 1.5MPa
Operating of Temperature Range 5~60℃
Range of Adjustable Pressure 0.05~0.85MPa
Recommended oil Use ISO VG32
Container Material Polycarbonate
Drain Function Differential Drain / Automatic Drain
