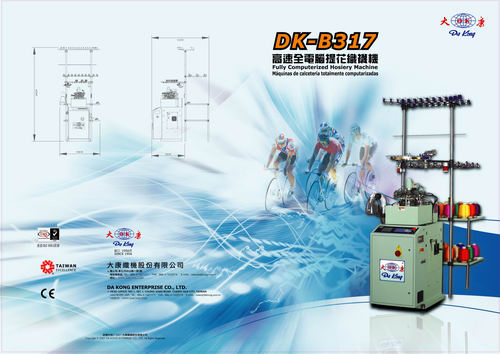

Fully Computerized sports sock Machine
Modeeel: DK-B317
Industry: Textile, Sewing, Garment Machinery & Industrial Equipments / Textile Machinery / Socks Knitting Machines
Supplier; Da Kong Enterprise Co., Ltd.
Booth No: 186
Characteristics
DK-B317 Fully computerized, single cylinder hosiery machines. Allow for more color combinations, more patterns, more sock designs, and higher productivity. Applicable for men's, women's, long socks, pant socks, terry sport socks, wrist bands, elbow bands, head bands and so on.
Features:
Pneumatically controlled yarn fingers.
2 main feed + 1 elastic feed knitting.
Applicable to knit terry by 2 main feed knitting.
Auto-testing, error sensors and self-protection system.
Japanese WAC high-speed and advanced electric actuators.
Drumless, fully computerized controlled driven by brushless servo-motor.
Equipped with an USB transmission device for easier data reading and storage.
Bigger memory on each CPU allows saving more pattern, size, and program storage.
Option of up to 1st main feed(8 yarn fingers) + 2nd main feed(4 yarn fingers)+ 5 pattern feeds(14 colors).
Two sets of pickers and droppers act while making heel part.The productivity and knitting quality are higher than traditional single ones.
Equipped with UPS, which maintains the memory of program and knitting action if temporary electric power termination happens.When the power is restored, machine can continue knitting to reduce the loss or wastage.
Elastic yarn feeding is controlled by elastic stepping motor for varying course size on the same sock.Elastic yarn feed is for two colors.
Automatic lubrication system.The oil injection is controlled by penumatic system.
Stitch quality, speed, course length, size, quantity, chain steps, pattern...etc., can be controlled and altered from the panel of machine control box.
LCD allows the operator to easily supervise knitting conditions including: error messages, stop signals, production quantities, cylinder speed and so on.Languages are available for Chinese, English, Spanish, ltalian, lndonesia and Turkish language for users to operate.
Specifications
Model: DK-B317-7
Cylinder Diameter: 4 1/8"
Needle Range: 56N - 240N
SelectionGroups: 6
Main feed(yarnfinger Qty) +Patterm feed(yarnfinger Qty): 2 (8,4)+ 5 (3,3,3,3,2)
Speed: 220 - 300RPM(Plain)
MotorPower-usage: 0.85KW
FanPower-usage: 0.75KW
N.W./G.W.(KG): 335 / 400Kg.
Packing: 105X105X180cm
Model DK-B317-7T
CylinderDiameter 4 1/8"
Needle Range 56N - 200N
SelectionGroups 6
Main feed +Patterm feed 2 (8,4) + 5(3,3,3,3,2)
Speed 220 - 280RPM(Terry.en rizo.)
250-300RPM(Plain.en liso.)
MotorPower-usage 0.85KW
FanPower-usage 1.1KW
N.W./G.W.(KG) 335 / 400Kg.
Packing 105X105X180cm
