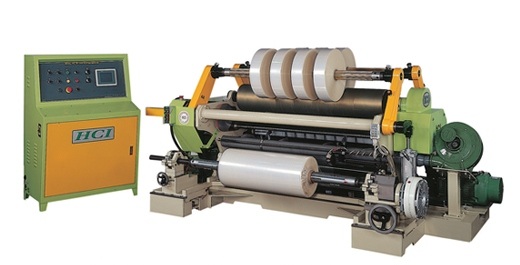

Surface Winding Slitting Machine

Modeeel: FSL-BT1300

Industry: Plastic and Rubber Industry / Machinery for Processing Plastics / Plastic Slitting & Rewinding Machines

Supplier; Hci Converting Equipment Co., Ltd.

Booth No: -

Characteristics

※Unwinding Section
　　Lift-up & floating type unwind stand with 3" air shaft.
　　The tension is sensed by load cell sensor and compared to the set tension.
　　Pneumatic nip rubber roller: providing perfect tension isolation.
※Slitting Section
　　Razor cutting in the groove roller method.
　　Statics eliminator.
　　Equipped with trim reject fan and left/right moving type trim winder.
※Surface winding Section
　　Two independent motors controlled each rewinding shaft for the most accurate tension output.
　　Rewinding diameter feedback system assures extremely stable rewinding tension without the need to adjust the tension according to speed and diameter variables.
　　Rewind shafts auto ascent/ descent mechanism help heavy rolls unloading.
※Man-Machine Interface Control System
　　LCD colorful touch screen.
　　Dialogue parameter setting environment.
　　Parameters memory function.
　　Tension computes function.
　　Tension control auto/manual.
　　Unwind auto stop and material exhausted stop.
　　Meter reached auto stop.
　　Rewind tension auto increase.
※Optional Accessories
　　Web guiding system (printing line & edge)
　　Hydraulic ascent/descent unwind stand.(dia.1,000mm)
　　Shear knives cutting method.
　　Vacuum type trim disposal system.
　　Special size of rewind shaft.

Specifications

Specifications	FSL-BT1300 Surface Winding Slitting Machine
Mechanical Speed (m/min)	0-200
Core Inner Diameter (mm)	76 / 3" or (152 / 6" Optional)
Web Width (mm)	400 - 1,300
Maximum Unwind Diameter (mm)	600
Unwind Tension Control	Magnetic Powder Brake With Load Cell Sensor
Slitting Techniques	Razor In Groove Roller
Trim Removal	Blower with Trim Winder
Minimum Rewind Web Width (mm)	20
Maximum Rewind Diameter (mm)	500
Rewind Tension Control	Vector Motor *2
