Narrow Width Slitting Machine

Enlarge

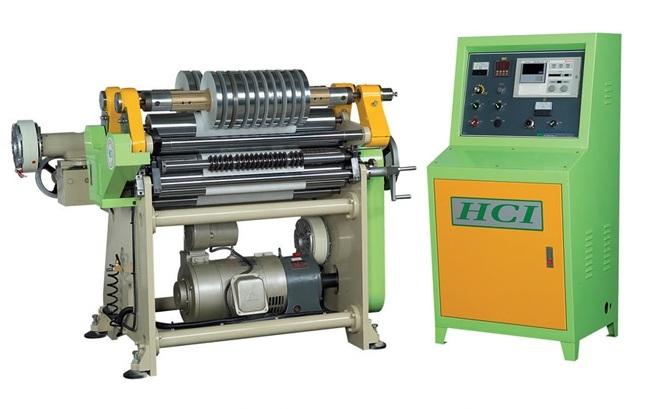

Narrow Width Slitting Machine

Modeeel: FSL-J600 / FSL-J800

Industry: Plastic and Rubber Industry / Machinery for Processing Plastics / Plastic Slitting & Rewinding Machines

Supplier; Hci Converting Equipment Co., Ltd.

Booth No: -

Characteristics

※Unwinding Section
　　This compact design occupies minimal floor space.
　　Swing out & fixed type unwind stand with 3" air shaft. Single operator is required to manipulate and load the parent roll.
　　The rollers are tightly arranged to decrease tolerance of cross and longitudinal winding of material.
※Slitting Section
　　Shear knives cutting method.
　　Rewinding Section
　　The speed can be easily varied to accommodate tension difference caused by the changing diameter of the winding material.
　　The winding and feeding motions are driven by a universal satellite gear transmission.
　　Equipped with meter counter which can stop the machine automatically when preset length reached.
※Optional Accessories
　　Unwind tension auto controller with load cell sensor.
　　Rewind tension auto controller.
　　Vacuum type trim disposal system.
　　Special size of rewind shaft.

Specifications

Specifications	FSL-J600 Narrow Width Slitting Machine	FSL-J800 Narrow Width Slitting Machine
Mechanical Speed (m/min)	0-100	0-100
Unwind Stand	Shafted & Flxed Type	Shafted & Flxed Type
Unwind Core Inner Diameter	3"	3"
Unwind Web Width (mm)	200 - 600	200 - 800
Maximum Unwind Diameter (mm)	500	500
Unwind Tension Control	Magnetic Powder Brake	Magnetic Powder Brake
Slitting Techniques	Shear knives	Shear knives
Rewind Core Inner Diameter (mm)	40 (Or Request)	40 (Or Request)
Minimum Rewind Web Width (mm)	10 (5mm On Request)	10 (5mm On Request)
Maximum Rewind Diameter (mm)	270	270
Rewind Tension Control	Magnetic Powder Clutch	Magnetic Powder Clutch
