Bag Making Machine For Static Shielding Bag

Enlarge

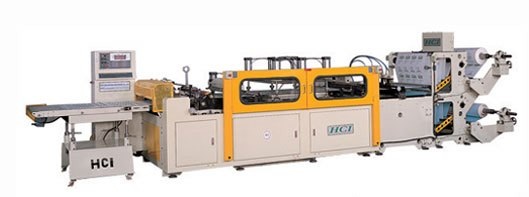

Bag Making Machine For Static Shielding Bag

Modeeel: FSC-503-1

Industry: Plastic and Rubber Industry / Machinery for Processing Plastics / Plastic Bag Making Machines

Supplier; Hci Converting Equipment Co., Ltd.

Booth No: -

Characteristics

※Main drive AC motor + inverter control.
※The Static Shielding Bag length is accurately controlled by servo motor incorporated with photocell sensor for greatly upgrading the production speed.
※Horizontal unwind stand with v board provides the most convenient material loading and folding operation.
※Equipped with web guiding system (line/edge) which assured the accuracy of sealing and trimming position.
※Feeding dancer- roller assures that the most stable web feeding even under high speed operation.
※Bottom sealer auto ascending device which can prevent the material been overheated or broken when machine stop. (Patent No.42360)
※Equipped with microprocessor PID temperature controllers provide the most accurate and fastest heating performance.
※Sealing time delay control provides excellence sealing quality for thick anti static film. Superior static shielding bag performance is thus assured.
※Equipped with one set of water cooling device.
※Micro computer control system.
※Optional accessories
　　Trimming device
　　Pneumatic puncher
　　conveyer

Specifications

Specifications	FSC-503-1 Static Shielding Bag Making Machine
Material Width [mm]	300-1000
Material Diameter [mm] [max.]	500
Bag Length [mm]	150-500
Bag Width [mm]	50-400 (FEEDING LENGTH)
Mechanical Speed [bags/min.]	30-130
Production Line	Multi-Lanes
