Sealing and Cutting Machine - Three Step

Enlarge

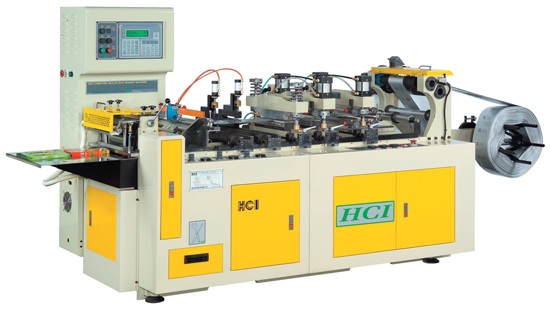

Sealing and Cutting Machine - Three Step

Modeeel: FSC-303 / FSC-503

Industry: Packaging, Printing, Food & Pharmacy Machinery / Packaging Machinery / Piece Cutting Machine

Supplier; Hci Converting Equipment Co., Ltd.

Booth No: -

Characteristics

※Unwinding Section
　　Replaceable unwind shaft is suited for five-claw coreless and 3" paper core.
　　The AC motor driven unwind dancing roller unit for auto speed varied and assures that the most stable web feeding even under high speed operation.
※Bottom Sealing Section
　　Three-step sealer design (1. upper and lower heating 2.upper heating 3. water cooling); producing an airtight seal. Especially for poly bags which thick and hard to seal.
　　Bottom sealer auto ascending device which can prevent the material been overheated or broken when machine stop. (Patent No.42360)
　　Skip seal function: the bag's length can reach to 9 times of feeding.
　　Equipped with microprocessor PID temperature controllers which can provide the most accurate and fastest heating performance.
※Cutting Section
　　The cutting length is accurately controlled by servo motor incorporated with photocell sensor for greatly upgrading the production speed.
※Micro Computer Control System
　　Auto counting function.
　　Accumulative recording function.
　　Auto-stop function for photocell ineffective.
※Optional Accessories
　　Center folding unwind stand.
　　Pneumatic puncher.
　　Date & code printer.
　　Zigzag cutter.
　　Rewind perforation device.
　　Rewinding device.
　　Products conveyer.

Specifications

Specifications	FSC-303 (503) Three Step Sealing and Cutting Machine
Cutting Width (mm)	30 - 300 (50-500)
Material Diameter (mm) (max.)	700
Unwind Inner Diameter (mm)	76 / 3" or 300mm Five-claw coreless
Cutting Length (mm)	50 - 400
Mechanical Speed (bags/min.)	30 - 130
Feeding Speed (m/min.) (max.)	30 (28)
