Rigid Film Flatten and Sheeting Machine

Enlarge

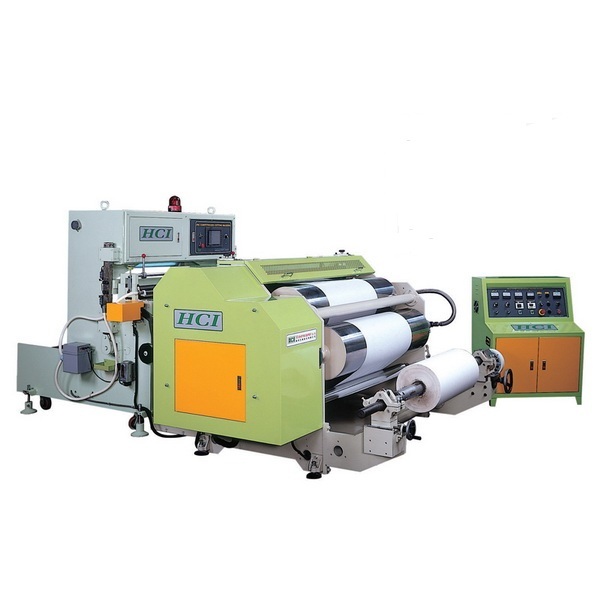

Rigid Film Flatten and Sheeting Machine

Modeeel: FSC-G1000

Industry: Packaging, Printing, Food & Pharmacy Machinery / Packaging Machinery / Piece Cutting Machine

Supplier; Hci Converting Equipment Co., Ltd.

Booth No: -

Characteristics

※Unwinding Section
　　Lift-up type unwind stand with 3" air shaft. Single operator is required to manipulate and load the parent roll.
　　Equipped with magnetic powder brake for tension control.
　　The AC motor driven dancing roller unit for auto speed varied and assures that the most stable web feeding.
※Flatten Section
　　Employs an automatic thermo-controlled heated oil circulation system; flatten films can be neatly flattened and smoothed.
　　The heating roll employs a hot kerosene circulation for energy and cost saving performance.
※Sheeting Section
　　Numerically controlled stepping motor provides very accurate positioning and cutting, and reduces errors to a minimum.
　　The cutter is hydraulically controlled without further adjustment for cutting thick and thin materials.
　　Special alloy blade provides clean and long lasting cutting performance.
　　The cutter is specially guarded for maximum operator safety.
　　Equipped with static eliminator.
　　Products collecting board.
※Control Section
　　Touch screen setting for cutting length, speed and related parameters.
　　Auto counting function.
　　Accumulative recording function.
　　Auto-stop function for photocell ineffective.
※Optional Accessories
　　Twin shafts unwinder.
　　Hydraulic ascent / descent unwinder.
　　Web guiding system. (Line & edge)
　　Slitting device.
　　Edge trimming device.
　　Printing photocell (Sick Germany).

Specifications

Specifications	FSC-G1000 Rigid Film Flatten and Sheeting Machine
Unwind Diameter [mm] [max.]	600
Unwind Inner Diameter [mm]	76 / 3" (or on request)
Cutting Length [mm]	1-9999
Cutting Width [mm]	200-1000
Mechanical Speed [pcs/min.]	10-40
