Shrink Label Glue Sealing Machine (Sleeve Seaming Machine)

Enlarge

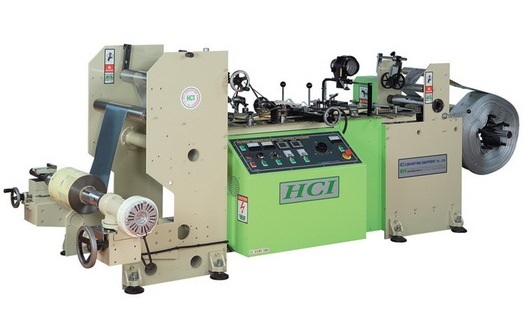

Shrink Label Glue Sealing Machine (Sleeve Seaming Machine)

Modeeel: FK-250

Industry: Packaging, Printing, Food & Pharmacy Machinery / Packaging Machinery / PVC/PE Shrink Film Wrapping Machines

Supplier; Hci Converting Equipment Co., Ltd.

Booth No: -

Characteristics

※Unwinding Section
　　Swing out & floating type unwind stand with 3" air shaft. Single operator is required to manipulate and load the parent roll.
　　Equipped with magnetic powder brake for unwind tension control.
　　Main drive AC motor provides variable speeds to accommodate a variety of materials.
※Glue Sealing Section
　　Equipped with glue feeding adj. magnet valve and flow quantity regulator.
　　The accurate width is achieved by using the shrink label forming plate.
　　Equipped with blower for drying the solvent faster also increasing the production speed.
※Rewinding Section
　　Rewind TQ motor provides the stable winding tension.
　　Cantilevered five-claw coreless winder provides the fastest roll changeover.
※Optional Accessories
　　Mechanical speed up to 200 m/min
　　Web guiding system. (Edge)
　　Glue Sealing flow quantity auto control device.
　　Vertical continuous perforation device.
　　3"HCI quick lock winding shaft.
　　Rewind oscillation device.

Specifications

Specifications	FK-250(PVC Shrink Label)	FK-350(PVC Shrink Label)
Material Width [mm]	60 - 520	120 - 720
Material Dia. [mm] [max.]	450	450
Unwind Inner Dia. [mm]	76 / 3"	76 / 3"
Tube Width [mm]	25 - 250	50 - 350
Rewind Dia. [mm] [max.]	700	700
Rewind Core Inner Dia. [mm]	300mm Five-claw coreless	300mm Five-claw coreless
Mechanical Speed [m/min.]	0-100 (200 Optional)	0-100 (200 Optional)
