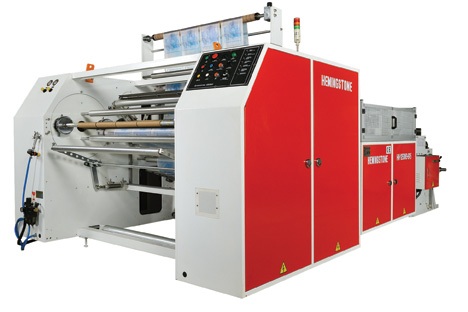

High Speed 5-Line Bottom Sealing Bag on Roll Making Machine with Hot slitting Unit
Modeeel: HM-1250MS+BP5
Industry: Plastic and Rubber Industry / Machinery for Processing Plastics / Plastic Bag Making Machines
Supplier; HEMINGSTONE MACHINERY CO., LTD.
Booth No: -
Characteristics
High Speed 5 Line Bottom Sealing Bag on Roll Making Machine with Hot Slitting Unit.
This multi-line bag making machine is especially designed for mass production of bottom sealed bags on a roll. Bottom sealed bags are normal mally used as vegetable and fruit bags.
Function: Jumbo film is side sealed or bottom sealed then perforated. The perforated film goes through the multi-line hot slitting system to be slit and hot sealed into bags. Perforated bags are wound automatically. The most distinguishing feature is the non-stop bottom sealing device. Bottom sealing is performed using the principal of vibration so sealing and perforating are carried out simultaneously.
Therefore simultaneous perforating and sealing allow the machine to run without stopping.
Benefits: The automatic winding system allows for mass production while greatly reducing labor requirements. Very easy to operate the machine with an exceptional servo drive system.This machine is a great choice for high speed mass production of printed and non-printed bags.
Specifications
|
Model
|
HM-1250MS+BP5
|
|
| Film Width (unwind) (mm) | 1200 | |
| Film Diameter(mm) | 800 | |
|
Bag Size
|
Width(mm)
|
100~1000 |
|
Length(mm)
|
250~2000 | |
| Production Speed (pcs/min ) |
220 ×5 =1100
|
|
|
Line Speed (m/min)
|
160
|
|
| Thickness of Film (Total) (mm) |
0.01~0.08
|
|
| Speed for Changing the Roll / Max. | 4 | |
| Roll Size (mm) | Width |
150~1100
|
| Diameter (max.) |
300
|
|
| Power Required (kw) | 17 | |
| Machine Dimensions | L (m) | 7.0 |
| W (m) | 2.8 | |
| H (m) | 2.1 | |
| Machine Weight (kg) | 3000 | |
| Air compressor (not included) (hp) | 2 | |
