High Speed Shrink Sleeve Glue Sealing Machine (Sleeve Seaming Machine)

Enlarge

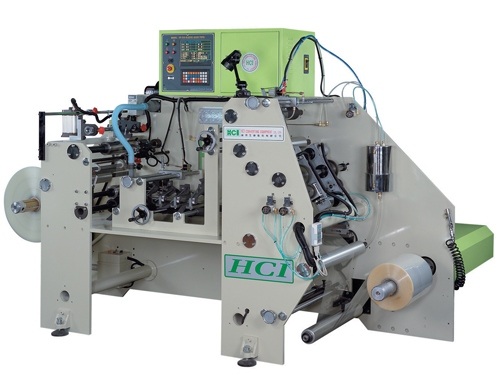

High Speed Shrink Sleeve Glue Sealing Machine (Sleeve Seaming Machine)

Modeeel: FP-250

Industry: Packaging, Printing, Food & Pharmacy Machinery / Packaging Machinery / PVC/PE Shrink Film Wrapping Machines

Supplier; Hci Converting Equipment Co., Ltd.

Booth No: -

Characteristics

※Unwinding Section
　Built with heavy-duty frame to ensure Shrink Sleeve Seaming Machine operation.
　Main drive AC motor + inverter.
　Cantilevered unwind 3" air shaft for fast roll changeover.
　Web guiding system provides the accuracy shrink sleeve seaming position.
　Equipped with magnetic powder brake for unwind tension control.
　Shrink Sleeve Seaming Section
　Sleeve width adjusting device: forming plate unnecessary when shrink sleeve width over 50mm, bring down the production cost.
　Solvent flow adjusting system: the flow of solvent is automatically match up with the machine speed varies.
　Equipped with blower for drying the solvent faster also increasing the production speed.
※Rewinding Section
　Cantilevered rewind 3" air shaft for fast roll changeover.
　Equipped with tension load cell assure extremely stable rewinding tension without the need to adjust it when speed and diameter varied.
　Equipped with statics eliminator.
　Micro Computer Control System
　Adopted with industrial micro computer providing the accurate and stable control.
　Colorful LCD touch screen
　Unwind tension auto control function.
　Rewind tension auto increase function.
　Rewind length setting function.
※Optional Accessories
　Shrink sleeve forming plate for under 50mm (Size on request)
　Hot melt coating device.
　Stroboscope with photo sensor.
　Vertical continuous perforation device.
　Twin line vertical continuous perforation device.
　Taping device.
　Rewind oscillation device

Specifications

Specifications	FP-250 Shrink Sleeve Seaming Machine
Material Width (mm)	110 - 520
Material Diameter (mm)(max.)	500
Unwind Core Inner Diameter (mm)	76 / 3"
Tube Width (mm)	50 - 250
Rewind Diameter (mm) (max.)	700
Rewind Core Inner Diameter (mm)	76 / 3"
Mechanical Speed (m/min.)	0-200
