Sleeve Rewinding and Inspection Machine - Reversible

Enlarge

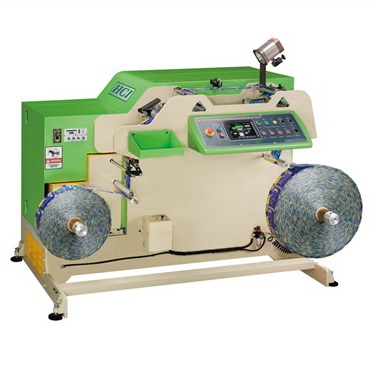

Sleeve Rewinding and Inspection Machine - Reversible

Modeeel: FSP-250-2

Industry: Packaging, Printing, Food & Pharmacy Machinery / Packaging Machinery / PVC/PE Shrink Film Wrapping Machines

Supplier; Hci Converting Equipment Co., Ltd.

Booth No: -

Characteristics

※The roll diameter can reach to 700mm and 2 cantilevered expanding shafts for fast loading.
※Equipped with web guiding system creates an extremely neat edge.
※The winding direction can be changed in any time with forward / reverse jogging functions.
※The winding tension is sensed by load cell and the control system will maintain the stable tension output during whole operation.
※Equipped with observed board and fluorescent lamps for visual checking.
Sleeves Seaming Quality Checking Device.
※2 web flowcharts for printing or seaming defects inspecting.
※Man-Machine Dialogue Control System: Touch screen, Auto tension control, ※Parameters memory, Length memorized & reverse function.
※Optional Accessories
　Stroboscope with mark sensor.
　Vertical continuous perforation device
　Rewind oscillation device
　Sleeves seaming quality checking device
　On-line web width measuring system

Specifications

Specifications	FS-250-2 Inspection and Rewinding Machine
Web Width (mm)	50 - 250
Inner Diameter (mm)	76 / 3" or on request
Winding Diameter (mm)(max.)	700
Mechanical Speed (m/min.)	0 - 250
