Shrink Label Re-reeling and Doctoring Machine

Enlarge

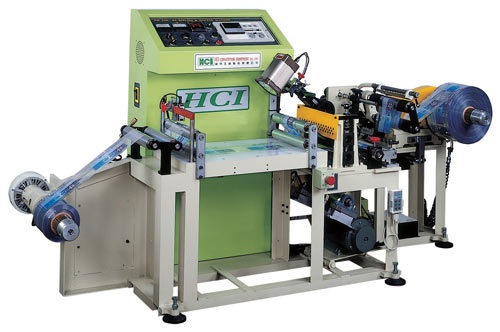

Shrink Label Re-reeling and Doctoring Machine

Modeeel: FSP-250

Industry: Packaging, Printing, Food & Pharmacy Machinery / Packaging Machinery / PVC/PE Shrink Film Wrapping Machines

Supplier; Hci Converting Equipment Co., Ltd.

Booth No: -

Characteristics

※Unwinding Section
　Cantilevered unwind five-claw coreless shaft for fast roll changeover.
　Equipped with magnetic powder brake for unwind tension control.
　Main drive DC motor provides variable speeds to accommodate a variety of materials.
※Doctoring Section
　Equipped with observed board for visual checking.
　Install an optional stroboscope light to check printing quality is available through instant vision conservation.
※Re-reeling Section
　The rewinding is controlled by DC motor and Auto tension controller ensures the stable winding tension.
　Web guiding system creates an extremely neat edge.
　Auto counter for winding length.
　Statics eliminator.
※Optional Accessories
　Unwind air shaft 3"
　Stroboscope with photo sensor.
　Vertical continuous perforation device.
　Rewind oscillation device.

Specifications

Specifications	FSP-250 Re-reeling and Doctoring Machine	FSP-350 Re-reeling and Doctoring Machine
Tube Width [mm]	50 - 250	80 - 350
Unwind Inner Dia. [mm]	300mm Five-claw coreless (Or 3"6" 8" 10" on request)	300mm Five-claw coreless
Rewind Diameter [mm] [max.]	600	600
Rewind Core Inner Dia. [mm]	76 / 3" (Or 6" 8" 10" on request)	76 / 3" (Or 6" 8" 10" on request)
Mechanical Speed [m/min.]	0 - 200	0 - 200
