High Speed Cutting Machine

Enlarge

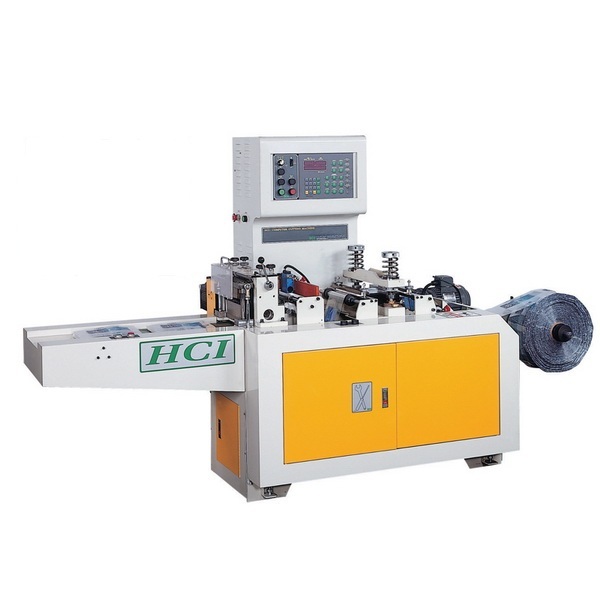

High Speed Cutting Machine

Modeeel: FSC-201

Industry: Packaging, Printing, Food & Pharmacy Machinery / Packaging Machinery / PVC/PE Shrink Film Wrapping Machines

Supplier; HCI Converting Equipment Co., Ltd.

Booth No: -

Characteristics

※Unwinding Section
　Replaceable unwind shaft is suited for five-claw coreless and 3" paper core.
　The AC motor driven unwind dancing roller unit for auto speed varied and assures that the most stable web feeding even under high speed cutting machine operation.
※Perforating Section
　Equipped with perforating device which can easily adjust the pressure and position.
※Cutting Section
　The cutting length is accurately controlled by servo motor incorporated with a German made photocell sensor for greatly upgrading the production speed.
　Equipped with static electricity removing device.
　Employs the product conveyor.
※Micro Computer Control System
　Auto counting function.
　Accumulative recording function.
　Auto-stop function for photocell ineffective.
※Optional Accessories
　Independent unwind stand.
　Vertical continuous perforation device.
　Skip cutting function.(Max. 1200 mm)
　Rewinding device.

Specifications

Specifications	FSC-201PVC High Speed Cutting Machine
Tube Width [mm]	30-200
Material Diameter [mm] [max.]	700
Unwind Inner Diameter [mm]	76 / 3" or 300mm Five-claw coreless
Cutting Length [mm]	10-400
Mechanical Speed [pcs/min.]	30-350
Feeding Speed [m/min.] [max.]	35
