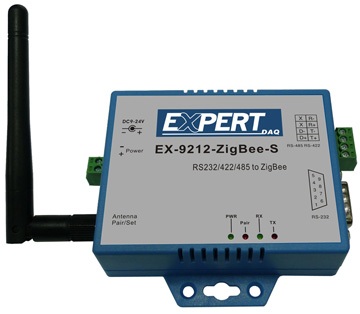

EX-9212Zigbee-S : Zigbee To RS-232/422/485

EX-9212Zigbee-F : Zigbee To RS-232/422/485+Digital I/O+Temp+Humi

EX-9212Zigbee-E : Zigbee To Ethernet / Wi-Fi

CPU

32 bits CPU ,16 MHz , 96KB RAM, 64KB ROM, 128KB Flash ROM

Zigbee

IEEE 802.15.4 compliant

Freq

ISM band 2400 ~ 2480MHz

Receiver Sensitivity

-90dBm

Transceiver Sensitivity

0dBm

Sleep Current

14uA (with active sleep timer)

Security processor ( 128 bits AES )

Operation Voltage

2.7 V~ 3.6V

Distance

up to 700 Meters ( in open area )

Data Rate

250K bps

Application

Mesh , Tree , Star

Serial Port

No.of Port

RS-232/422/485 * 1 port ( auto Detect )

RS-232

Rx , Tx , GND , RTS , CTS , DTR , DSR ( DB9 female )

RS-422

Tx+ , Tx-, Rx+ , Rx- (Over Current ,Surge Protect )

RS-485

Data+ , Data- (Over Current ,Surge Protect)

Built –in RS-422/RS-485 Terminal Resistor

Speed

1200 bps〜115.2K bps

Parity

None , Odd , Even

Data Bit

5,6,7, 8

Stop Bit

1 , 2

Flow Control

DTR / DSR

Digital I/O

Digital Input *1

3000VDC Isolation Protect ( Active High /Active Low Selectable )

Dry contact : Logic level 0 : close to GND , Logic level 1 : open

Wet contact : Logic level 0 : 0~3 V , Logic level 1 : 10 ~ 30 V

Digital Output * 1

Relay ( Active High /Active Low Selectable )

120V AC@10A , 240V AC@7A , 24V DC@10A

Temperature

0 ~ 80 ℃

Humidity

0~99 %

Setup Tool

Windows Utility

Power

DC 9 ~ 24V / 150ma @ 9V , 60ma @ 24V

Led Lamp

SYS (red) , Pairing (green) , Rx(red) , Tx(green)

Environment

Operating Temperature: 0℃〜70℃

Storage Temperature : -20℃〜80℃

Dimensions

85 * 75 * 25 mm ( W * D * H )

Weight

150 gm ( not include power )
