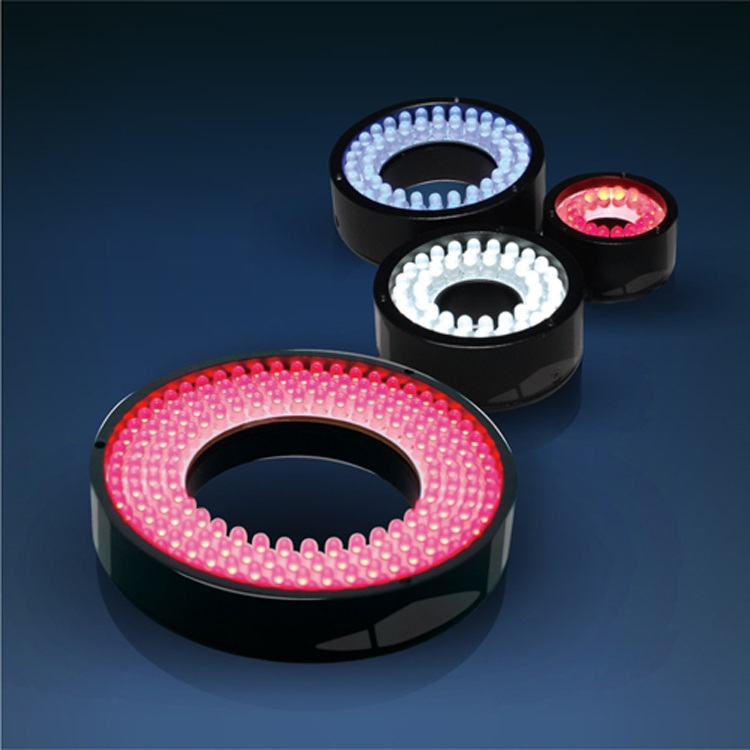

High Power Ring Lights
Modeeel: LED Lights(HRL Series)
Industry: Automatic/Industrial Machines & Equipments / Testing Equipment / Inspecting/Measuring Instrument and Parts
Supplier; VISWELL Technology Co., Ltd.
Booth No: J1201
Characteristics
1 Cost-effective and widely used Constant Current control LED ring Light.
2 Steady brightness, long lasting.
Specifications
Features
- Cost-effective and widely used Constant Current control LED ring Light.
- LED array are assembled on flexible PCB with high precision to help achieve desired angle.
- Continuous or strobe lighting options
- Optional diffuse plate for shining or highly reflective object inspection.
- All series provide 2, 3 or more LED rings, radiating angle (colors: white, red, blue, and green).
Applications
- Detection of various surface.
- Suitable for 2D, 3D precise dimensions.
- AOI automatic detection system.
- Label or bar code interpretation.
- Inspecting edge of the glass surfaces or detection of scratches the shiny surfaces.
- Used as an entity on the light microscope.
- PCB optical point (Fiducial mark) interpretation.
- All kinds of defects or printing problems detection.
Specificaiton
|
Model |
Color | Lighting Angle | ID/OD | 建Working Distance | Power Consumption |
| HRL-1643 |
|
Vertical angle/90° | 16/43 | 6-35 |
|
| High angle/70° | 16/43 | 15-45 | |||
| Low angle/30° | 16/43 | 6-35 | |||
| HRL-2850 |
|
Vertical angle/90° | 28/50 | 6-35 |
|
| High angle/70° | 28/50 | 25-45 | |||
| Low angle/30° | 28/50 | 10-30 | |||
| HRL-3667 |
|
Vertical angle/90° | 36/67 | 30-100 |
|
| High angle/70° | 36/67 | 25-80 | |||
| Low angle/30° | 36/67 | 10-30 | |||
| HRL-5090 |
|
Vertical angle/90° | 50/90 | 20-40 |
|
| High angle/70° | 50/90 | 60-100 | |||
| Low angle/30° | 50/90 | 20-40 | |||
| HRL-5790 |
|
Horizontal angle/0° | 57/90 | 0-10 |
|
| HRL-4070 |    |
Horizontal angle/0° | 40/70 | 0-10 |
|
| HRL-2348 | |
Horizontal angle/0° | 23/48 | 0-20 |
|
Note:1. White ray Blue ray Red ray
uv ray
850nm Infrared ray
940nm Infrared ray 2.Unit:mm
Lighting Diagram
