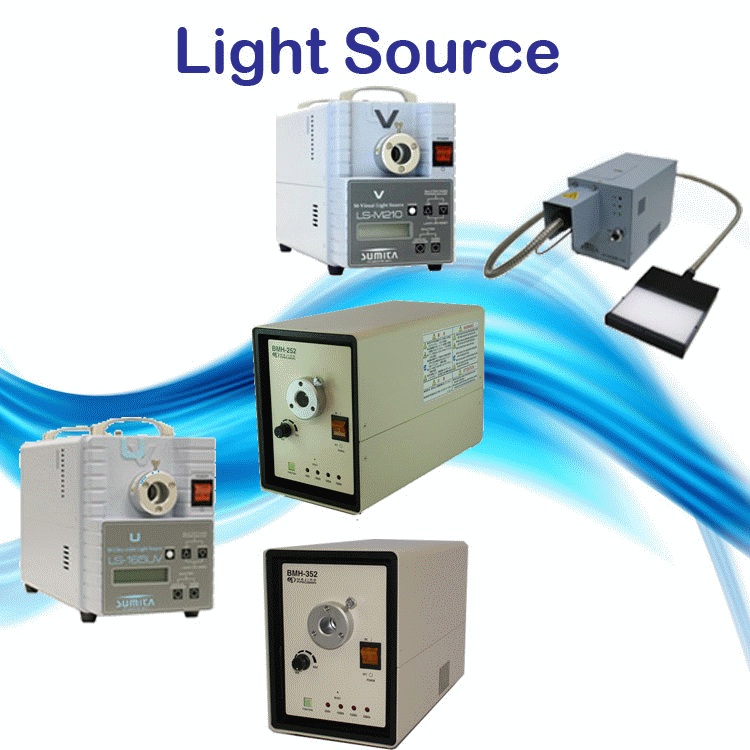

Light Source
Modeeel: Light Source
Industry: Automatic/Industrial Machines & Equipments / Testing Equipment / Work Lamp
Supplier; Diligent Vision Solution Trading Co.,
Booth No: J1305
Characteristics
Metal Halide Light Source
Sumita Metal Halide Light Source - High Function,
High Performance and suitable for Imaging Analysis.
Features of LS-M180
1. Precise Lighting Adjustment from 0% – 100% with Mesh Lighting Adjustment Filter
2. Shutter Control from 0.1 sec. through 999.9 sec. manually or RS232C
3. Up to 9 sets can be controlled by one PC with RS232C, allowing automatic operation.
4. Used with a DC Lighting Highly Efficient Metal Halide Lamp
5. Standard Specification : AC 100 V
Option : AC 220 V is available upon request
6. Long Life Lamp
Light Guide: Optional custom-making is available, with client drawings.
LS-M180FB
LS-M180FB is a new type of light source with a feed back function. For picture process analysis, the following three modes are set, enabling light volumes to adjust automatically.
1. Adjusts the light volume to the set feed back value after receipt of a specified command
2. Adjusts the light volume to the set feed back value at a regular interval
3. Adjusts the light volume automatically when the light volume goes outside the setting range
As the machine is equipped with a lamp exchange detection function, the initialization & zero value setting of the accumulated time can be done automatically. Furthermore, the front panel power switch can be controlled by a remote terminal and the power condition can be displayed by ON-OFF. This is a suitable light source for picture process analysis.
LS-M250 Features of LS-M250
1. Hexagonal rod lens is adopted (Uniformity of illumination)
2. Twin mirror system is adopted (Increasing light volume)
3. Corn plate is adopted (Eliminating light leakage)
Easy operation for Lamp exchange
LS-M350 Features of LS-M350
1. Low Cost
2. Suitable Lighting for Microscopes
3. Easy Operation
Outline
About 1.5 times higher Lux light source than the current LS-M250. Optimal functions such as power ON-OFF operation by external control, light volume, shutter function, 4 filters, etc. are available. An hour indicator which enables easy control of the lamp lifetime, is a standard specification. Lamp accumulation use time is monitored by a 500-hour unit in the LED display.
Drawings/Specs required for custom-made light guides
Specifications
Specification
|
LS-M180
|
LS-M250
|
LS-M350
|
|
|
Lamp Life Time
|
2000 hr
|
2000 hr
|
1500 hr
|
|
Color Temperature
|
4000k
|
7500k
|
7000k
|
|
Lighting Method
|
DC
|
||
|
Lux *
|
More than 1Million
|
||
|
Light Stability
|
Less than 1%
|
1.25%
|
3%
|
|
Lighting Adjustment
|
Manual or PC, etc(RS232C)
|
Manual
|
|
|
Lighting Range
|
0%~100% 1% step
|
Manual Operation Volume
|
|
|
Shutter Function
|
Manual or Remote Terminal (DC12V)
|
Option
|
|
|
Positioning
|
Horizontal
|
||
|
Usage Temperature
|
0~+35°C
|
||
|
Size
|
W150xH221xD316
|
W150xH217xD309
|
W170xH237xD339
|
|
Weight
|
6.5kg
|
6kg
|
8kg
|
|
Power Supply
|
AC100V 50/60Hz
|
||
|
**Option: AC 220V
|
|||
|
Power Consumption
|
Approx. 230W
|
Approx. 300W
|
Approx. 450W
|
|
Protection Function
|
Output stop by Temperature Detection
|
||
*Light Guide, used with Bundle Dia. 5φ, AL=2000 mmL.
Lighting at a distance of 50 mm from the end surface.
** AC 220V specification is available upon request.
