Seamless Steel Honed Tubes

Enlarge

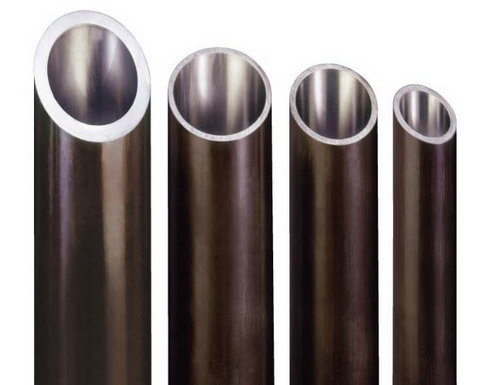

Seamless Steel Honed Tubes

Modeeel: YT20H

Industry: Machinery Parts and Components / Hydraulic and Pneumatic Components / Hydraulic Cylinders

Supplier; YEE YOUNG INDUSTRIAL CO., LTD.

Booth No: I1025

Characteristics

Seamless Steel Honed Tube withstands higher pressure than welded tube without splits. But, roundness of welded pipe is superior to seamless pipe. After honing, carbon steel pipe of mechanical structure use has precision diameter, smooth surface, and excellent performance of oil storage. It can work smoothly without pauses and has longer working life. Applies to hydraulic cylinders tube, pneumatic cylinders tube, forklift, crane, excavator, punching machine, and other kinds of labor-saving automatic mechanical engineering.

Specifications

內徑 m/m	外徑 m/m	工作壓力 kg/mm²
18	31	751
20	30	520
25	35	416
30	40	346
32	42	325
35	45	297
38	50	330
38.1	50.8	335
40	46	156
40	48	208
40	50	260
40	55	390
45	55	231
45	60	346
50	57	145
50	58	166
50	60	208
50	65	312
50	70	416
50.8	63.5	260
55	65	189
55	70	283
57	70	240
60	70	173
60	72	208
60	75	260
60	80	346
63	71	132
63	73	165

內徑 m/m	外徑 m/m	工作壓力 kg/mm²
63	76	215
63	80	280
63.5	76.2	210
65	75	160
65	80	240
65	85	320
70	80	148
70	82	178
70	85	238
70	90	297
75	85	138
75	90	208
75	95	270
76.2	88.9	170
80	90	130
80	95	195
80	100	260
82.55	95	160
82.55	98.4	200
85	95	122
85	101	203
90	100	115
90	105	173
90	110	231
95	110	165
95	115	220
100	109	94
100	110	104
100	114	146

內徑 m/m	外徑 m/m	工作壓力 kg/mm²
100	115	156
100	116	166
100	120	208
100	125	260
100	130	312
101.6	117.5	160
105	120	150
105	125	200
110	120	95
110	125	142
110	130	189
115	130	140
120	132	104
120	135	130
120	140	173
125	137	100
125	140	125
125	145	166
125	152	224
127	146	155
130	142	96
130	150	160
130	153	190
140	153	96
140	160	148
140	165	185
140	170	225
150	160	70
150	163	90

內徑 m/m	外徑 m/m	工作壓力 kg/mm²
150	168	125
150	170	140
150	175	173
150	180	210
160	172	78
160	178	117
160	180	135
160	185	162
160	190	195
165.1	190.5	160
170	190	125
170	195	150
177.8	203.2	150
177.8	215.9	220
180	196	92
180	202	127
180	216	208
200	216	83
200	232	166
200	242	210
203.2	228.5	130
225	254	135
250	267	71
250	290	170
250	298	200
300	318	62
300	350	173
350	420	208
