Home
Products
Embedded cpu board

Enlarge

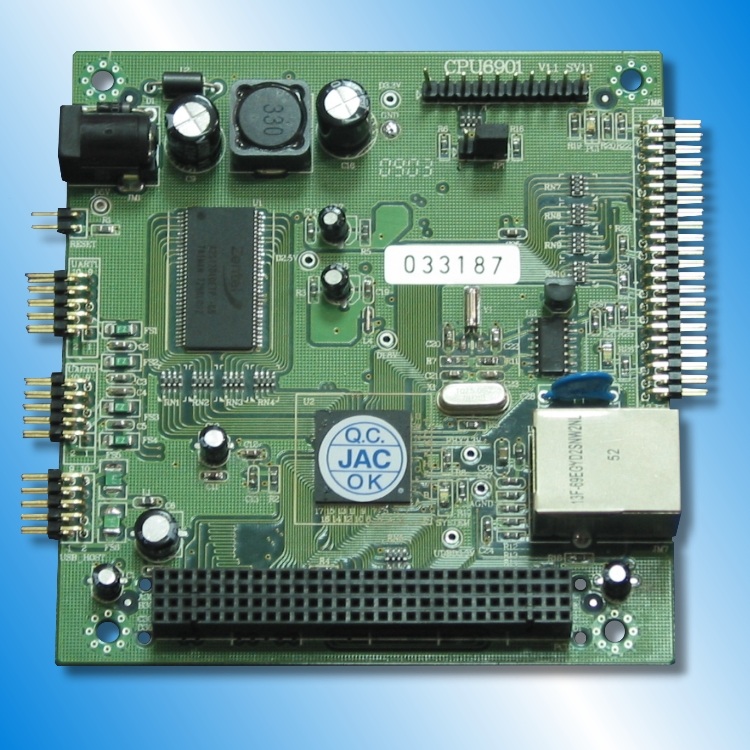

Embedded cpu board

Modeeel: CPU-6901

Industry: Automatic/Industrial Machines & Equipments / Automated Machinery & Equipments / Automatic Control Systems

Supplier; JS Automation Corp

Booth No: J1108

Characteristics

*PCI-104 form factor
*Support PCI-104 Extension Bus
*ARM922t processor run at 200MHz
*On board 8M flash, 32M SDRAM
*2 x USB2.0, 2 x RS232, 1 x IDE
*On board Ethernet 10/100M
*Fanless and low power consumption design
*Single 5V power
*I/O stack up to 4 cards
*uClinux and AIO6328, DIO3216 I/O card driver ready

Specifications

*CPU : ARM922t
*System Chipset : str8133
*Speed : 200MHz
*On Board System Memory : 8M serial flash, 32M SDRAM
*Cache Size : 32KB internal
*I/O
2 x RS232, 16C550 compliant
1 x IDE, 2 device, PIO, DMA (0~2), UDMA (0~5)
2 x USB 2.0 compliant
LAN : 10/100M auto
*PCI-104 : 32-bit, 33 / 66M PCI V2.2 compliant
*Power Supply Range : 4.5 ~ 5.5Vdc
*Power Consumption : 460mA @ 5V, 510mA @ 4.5V, 420mA @ 5.5V
*Operating system : uClinux (ready ported)
