Analog I/O Card (8 AI 2/4 AO 16 TTL Digital IO 2 32-bit Timer / Counter)

Enlarge

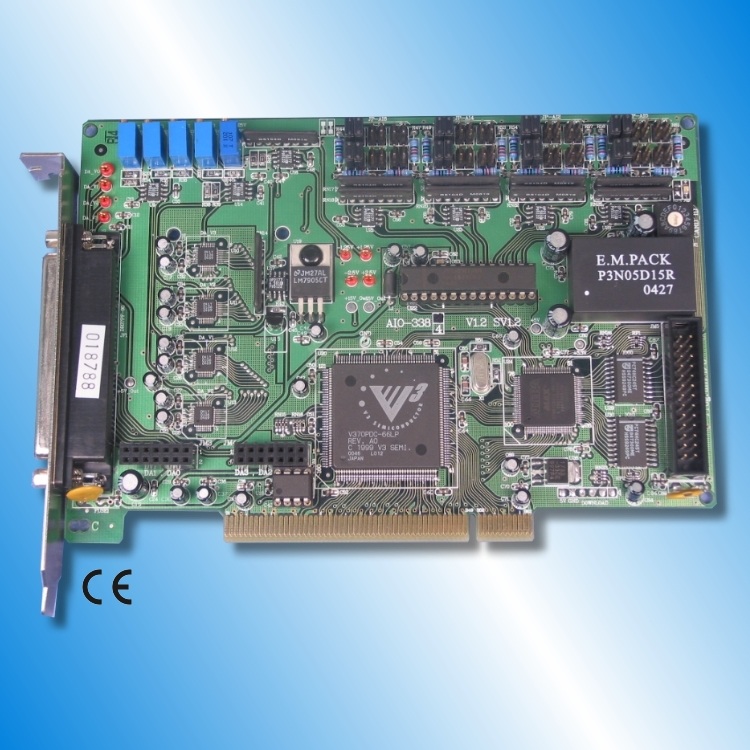

Analog I/O Card (8 AI 2/4 AO 16 TTL Digital IO 2 32-bit Timer / Counter)

Modeeel: AIO-3382/4

Industry: Automatic/Industrial Machines & Equipments / Automated Machinery & Equipments / Automatic Control Systems

Supplier; JS Automation Corp

Booth No: J1108

Characteristics

*Single end or differential 8 channel 12-bit analog input
*Software selectable input range :-10V~ +10V,-5V~ +5V, 0~10V, 0~5V
*2 / 4 channel 16-bit analog output (2AO : AIO-3382, 4AO : AIO-3384)
*Output range : 10~ +10V
*Optional add-on module for 0~20ma, 4~20ma sink or source output (AIO-3382A/B,AIO-3384AA/AB/BB)
*2 byte configurable TTL I/O
*IO00, Io01 as trigger/counter in, IO10, IO11 as trigger out of timer/counter function
*2 32-bit multifunction counters up to 33MHz
- programmable one-shot
- square wave generator
- event counter
- PWM generator
*Software key function

Specifications

Analog Input
*Input Channels : 8 channel differential or single end
*Resolution : 12-bit
*Input Range : -10V~ +10V, -5V~ +5V, 0~10V, 0~5V (software)
                          0~20mA , 4~20mA (hardware selectable)
*Input Iimpedance : 21K ohm(unipolar), 16K ohm(bipolar)
*Conversion speed : 5us per channel
*Integral linearity error : -1~ +1 LSB
*Zero Error : Bipolar -10~ +10 LSB(max),
                       Unipolar -5~ +5 LSB(max)
*Gain Error : -10~ +10 LSB(max)
Analog Output
*Output Channels : 2 (AIO-3382)
                                    4 (AIO-3384)
*Resolution : 16-bit
*Range : -10V~ +10V,
                   0~20mA, 4~20mA (option)
Digital I/O
*I/O Channels : 16 TTL (2 ports)
*Configuration : programmable byte input/output
Timer/Counter
*Channels : 2
*Data Length : 32-bit
*Specific Input : trigger in/counter in via digital i/o port 0
*Specific Output : trigger out /counter out via digital I/O port 1
*Time Base : timer @4MHz, counter @33MHz
*Multi-Functions : programmable one-short,
                                  - square wave generator
                                  - event counter
                                  - PWM generator
General
*Interrupt : from Timer/counter
*PCI Data width : 32-bit
*Card ID : 4-bit
*Operation Temperature : 0 OC ~ +70 OC
*Storage Temperature : -20 OC ~ +80 OC
*Operation Humidity : 5~95% RH, non-condensing
*Dimension : 167(W)*115(H)mm, 6.6(W)*4.6(H)in
